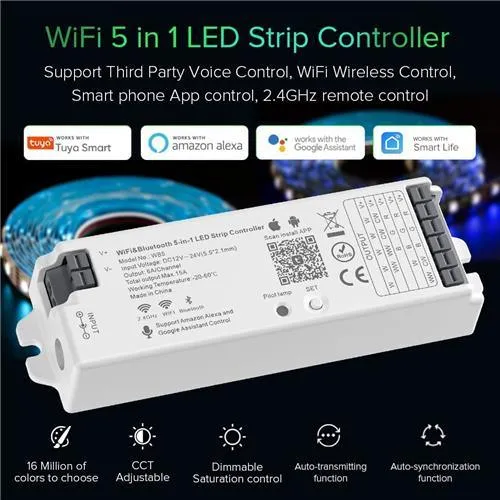

• Model: WB5
• Product Name: 5 IN 1 WiFi LED Controller
• Item size(LxWxH):125x38x23(mm) / 4.9x1.5x0.9(in)
• RF: 2.4GHz
• Control Distance: 30m (98.42ft)
• APP name: Tuya Smart
• Input voltage: DC12V or DC24V (It depends on what LED strip you use)
• Output: 3A/Channel (Total Output Max 15A) 12V180W 24V360W
• Working Temperature: -20-60℃
• Communication Mode: WiFi-IEEE 802.11b/g/n 2.4GHz or 2.4G RF
• Compatible LED strip: FCOB COB 3014 5630 3528 2835 5050RGB 5050RGBW 5050RGBW CCT 5050 WW CW
• Compatible Remote control :

1. Remote control series: FUT006/FUT007/FUT92/FUT095/FUT096/FUT088/FUT089
2. Panel series: B0/B3/T3/B4/T4/B8/FUT087/B1/T1/B2/T2

Attention:

• The working voltage is DC12 or 24V, the controller will be broken if the voltage is higher than 24V.
• Please check whether the input voltage of the constant voltage power supply is in accordance with the controller, and please check the connection of the cathode and anode.
• Please don't use controller around the metal area and high magnetic field, otherwise, it will badly affect the control distance
