Name: DFRobot Light & Motor Driver for Python (V1.0)
SKU: 78999

DFRobot Light & Motor Driver for Python (V1.0)
Offers versatile control methods including Python, UART, and manual adjustment
Handles DC motor speed and light adjustment with 5V to 24V input range
Supports high load capacity up to 10A for various applications
Adjusts PWM frequency from 183Hz to 46875Hz for precision control
Compact dimensions with easy mounting holes for convenient installation

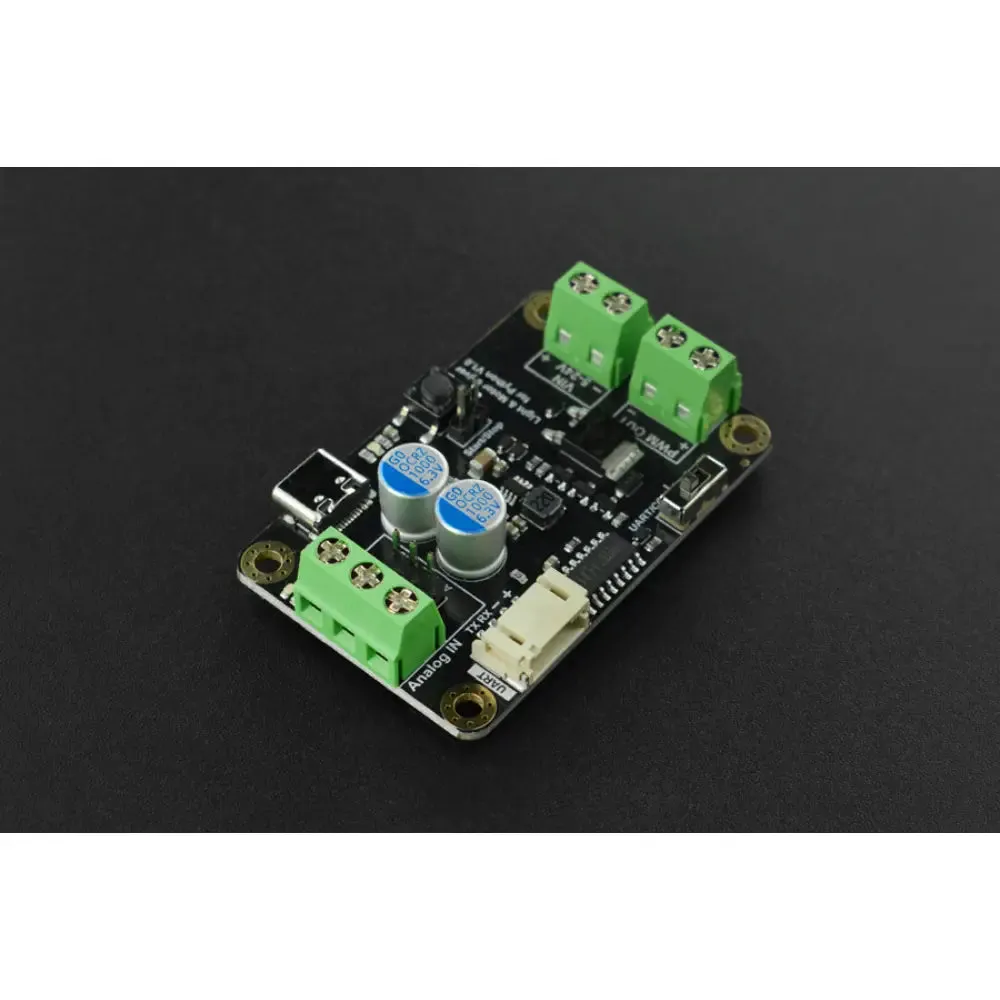

The DFRobot Light & Motor Driver for Python (V1.0) is a versatile PWM driver board offering four control methods: Python code, PC host computer, UART communication programming, and manual potentiometer adjustment. It is ideal for applications such as DC motor speed control and light adjustment, supporting a wide voltage input range of 5V to 24V and a load capacity of 10A. This driver board is suitable for controlling water pump volume, cooling fan speed, light brightness, power tool modifications, and automation of motor speed and lighting effects.

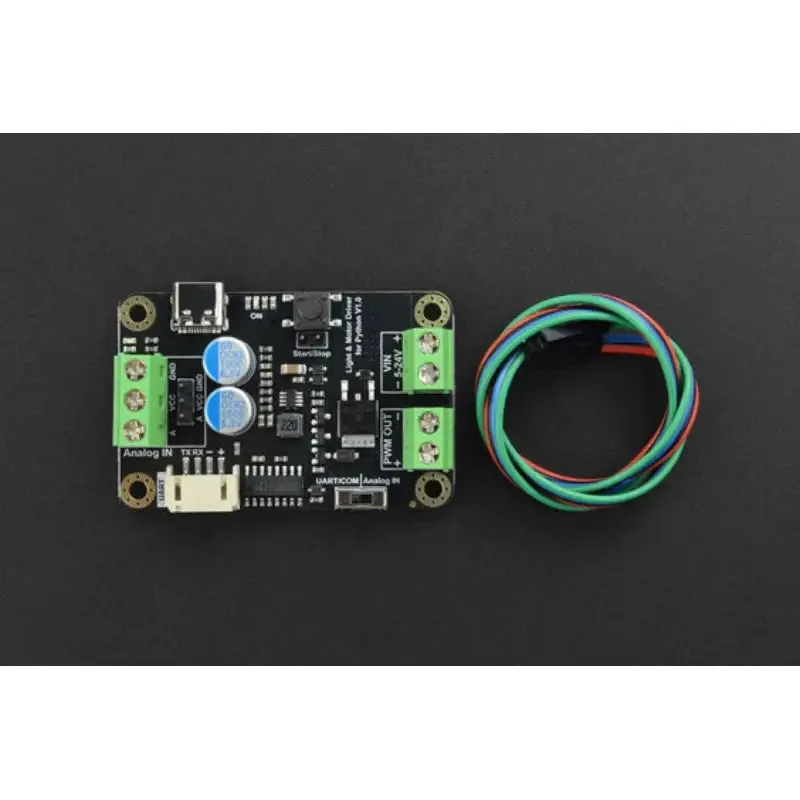

1x Light & Motor Driver for Python
1x Gravity 4P Cable (Connect to UART)

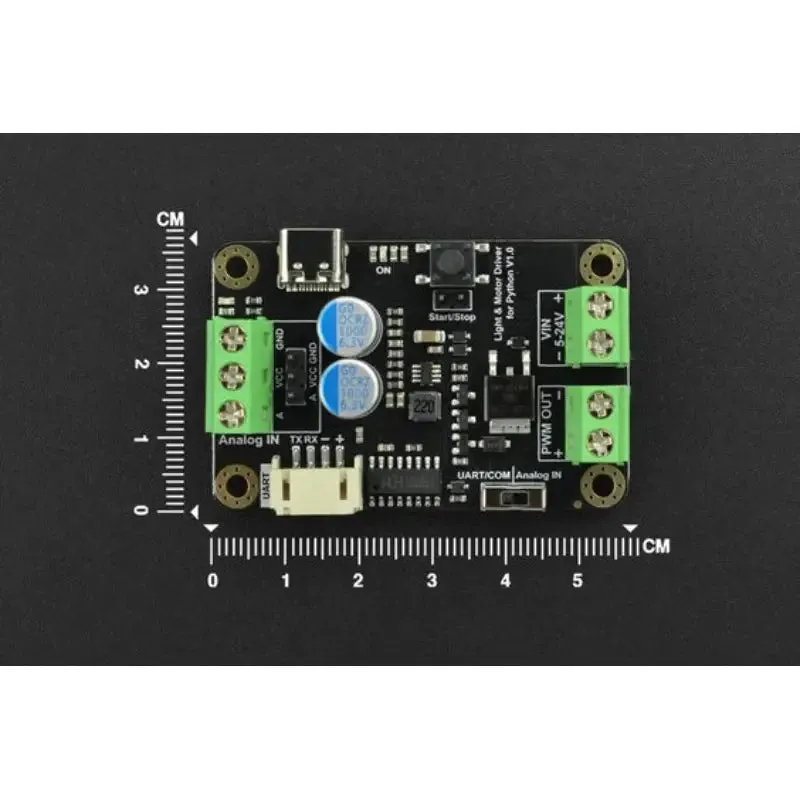

PCB Size: 37 x 57 mm (1.46 x 2.24 inches)

PDF File

Input Voltage Range: 5V to 24V
Maximum Control Current: 10A
PWM Duty Ratio Adjustment Range: 0 to 255
PWM Frequency Adjustment Range: 183Hz to 46875Hz
Number of PWM Channels: 1
Start/Stop Button: Yes
Control Modes: External potentiometer, UART communication, USB host computer, Python script
USB Interface: Type-C
UART Interface: PH2.0-4P
External Potentiometer Interface: 2.54mm pin header, binding post
Mounting Hole Specifications: 30mm x 50mm, diameter 3.1mm
