| Product Attribute | Attribute Value |
|---|---|
| Contact Form | SPST |
| Current, Load | 1 A @ 35 °C (Max.) |
| Dimensions | 49.5mm W x 49.5mm H x 115.3mm D |
| Display Colors | Green, Red |
| Display Type | Multi Line |
| Enclosure Rating | IP65 |
| Function | Temperature |
| Input Type | RTD, Thermocouple |
| IP Rating | IP65 |
| Maximum Operating Temperature | 50°C |
| Memory | EEPROM |
| Minimum Operating Temperature | 0°C |
| Mounting Type | Panel Mount |
| Number of Inputs | 1 |
| Number of Outputs | 3 |
| Output Type | Relay |
| Power Rating | 8 VA |
| Primary Type | Controller |
| Product Header | T48 Series 1/16 DIN Temperature Controller |
| Series | |
| Size | 49.5 x 49.5 mm |
| Special Features | EEPROM |
| Standards | cURus, CE |
| Supply Voltage | 85-250 VAC |
| Temperature Operating Range | 0 to 50°C |
| Temperature, Ambient | 0 to 50 °C (Max.) |
| Termination | Screw |
| Type | PID Temperature Controller |
| Voltage Rating | 120/240 VAC |
Overview

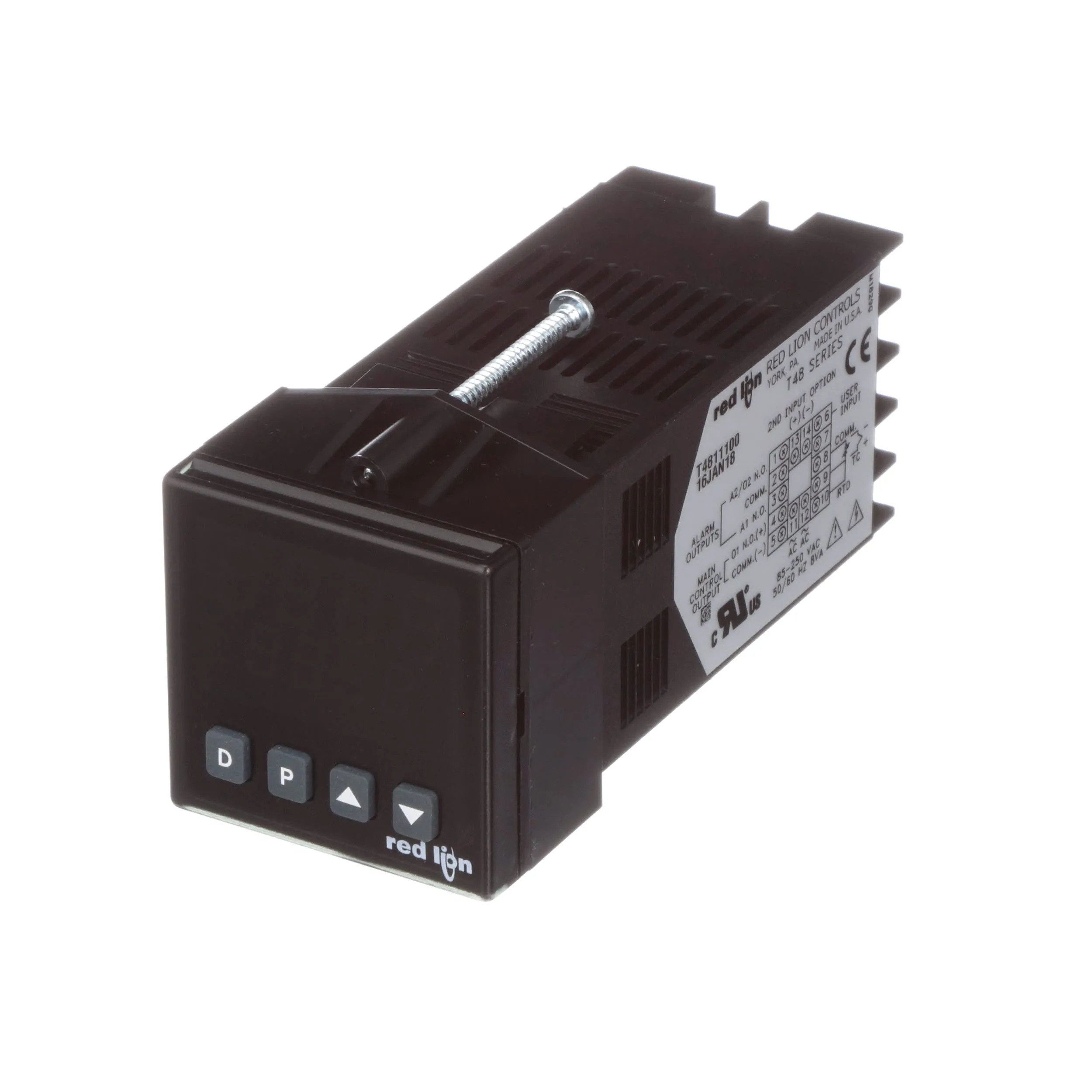

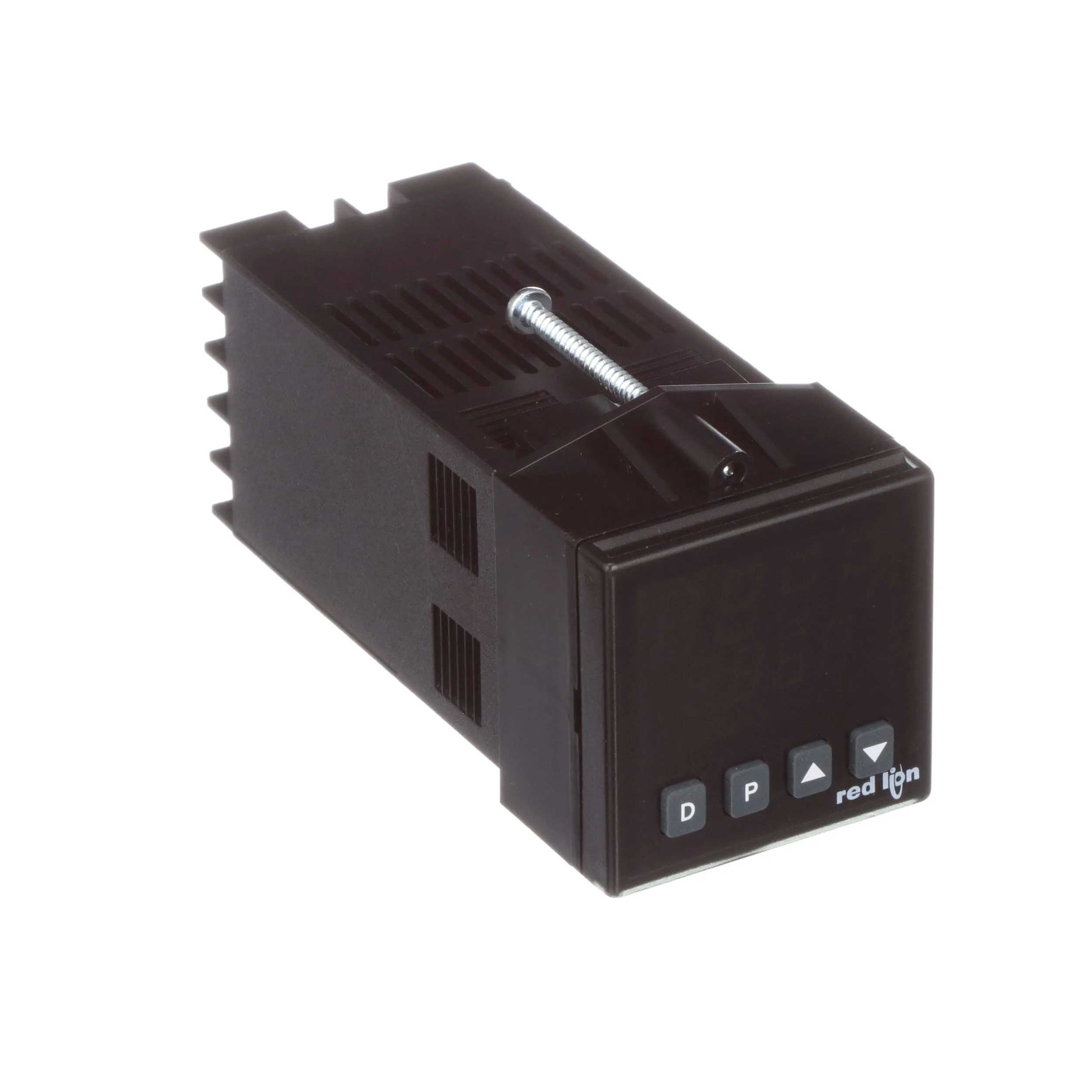

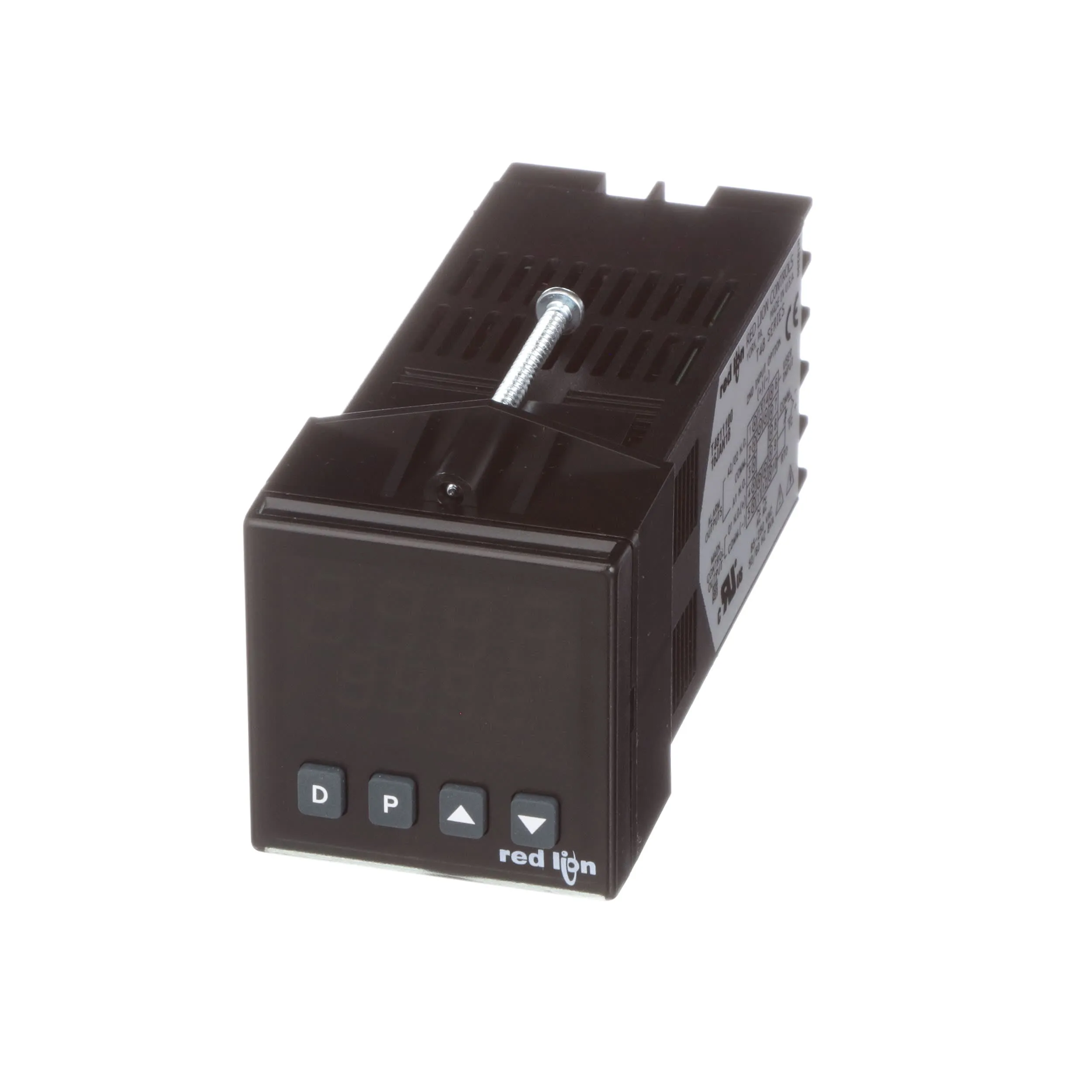

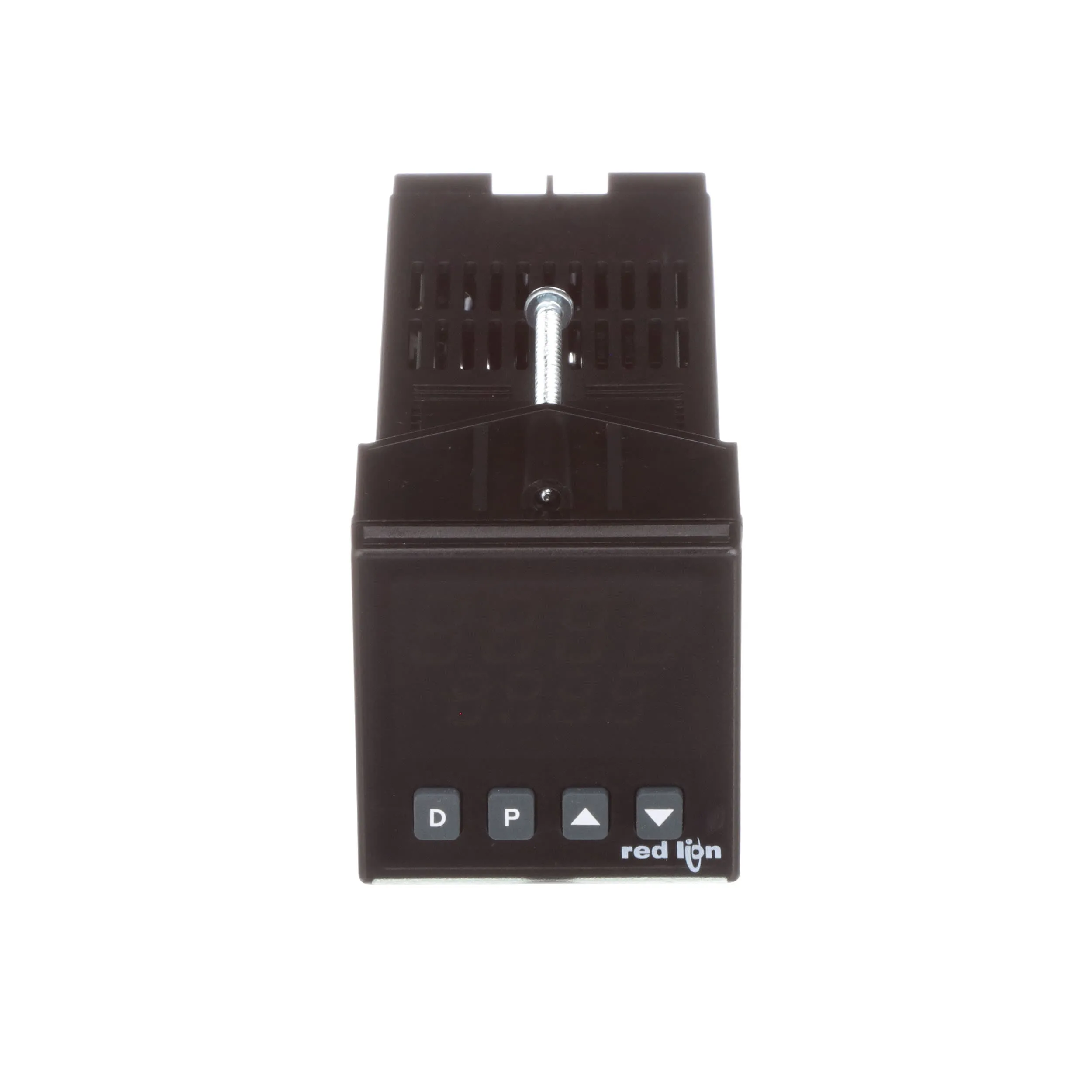

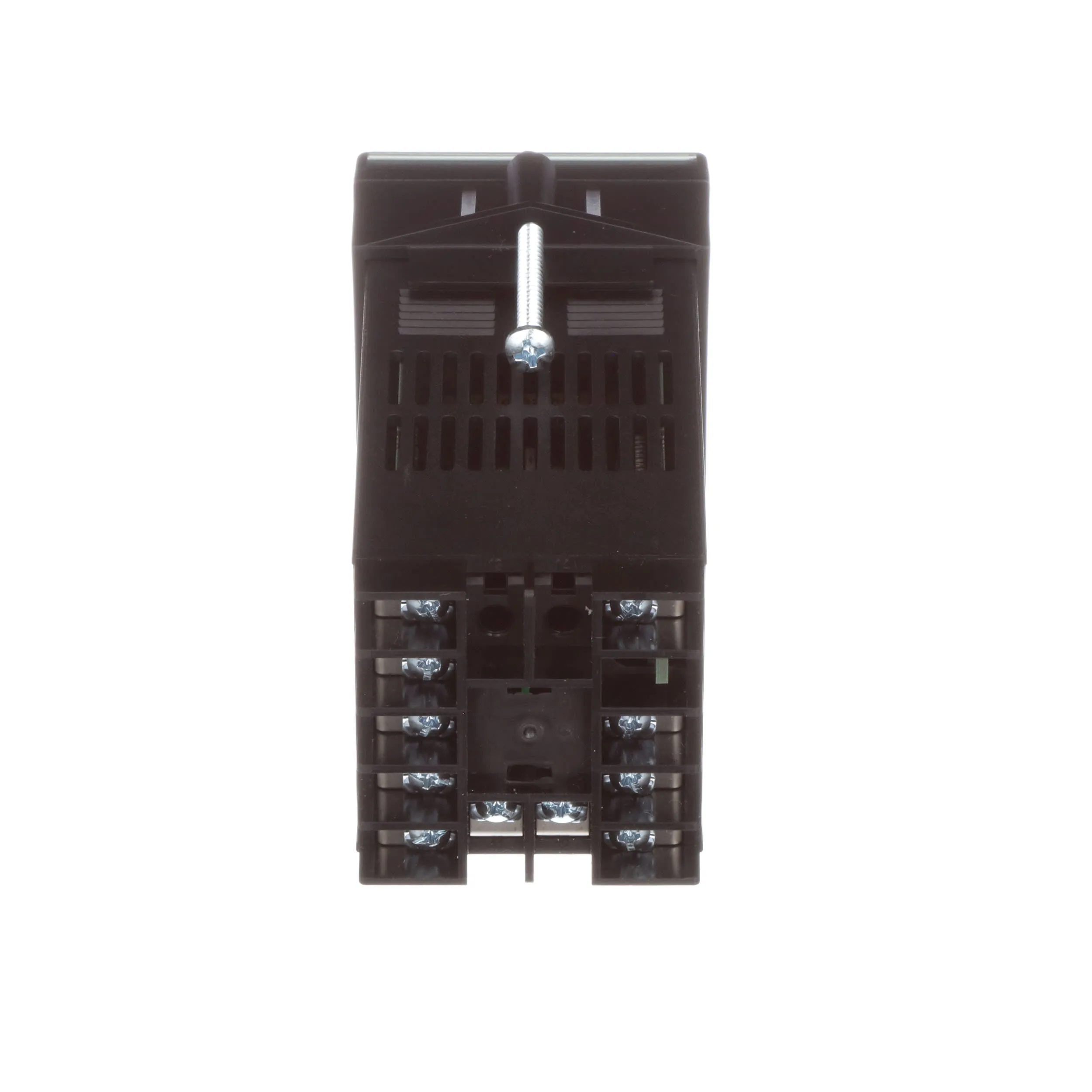

The Red-Lion T48 is a temperature control unit with a fast (100 ms) sampling time and numerous options for relay outputs. The Allied Electronics, Inc. offering includes a range of T48's capable of accepting ten different types of inputs with a dual 4-digit display for instant data recognition of six different parameters. The T48 includes an auto-tune function, which automatically loads PID control parameters into the unit's non-volatile memory. In addition to the standard 2-alarm output available on the T48, it also includes an option for a cooling output, linear DC output, solid-state relay, TRIAC, and a relay output (with addition of relay module). Features:
