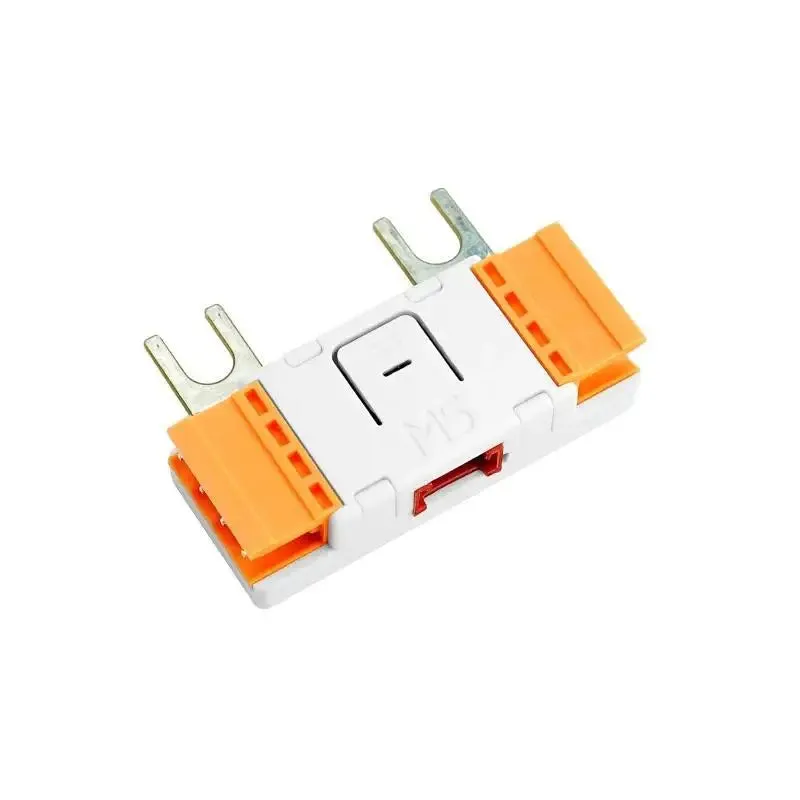

M5Stack Single-Phase AC SSR Unit (CDG1-1DA-10A)
M5Stack Single-Phase AC SSR Unit (CDG1-1DA-10A)
M5Stack Single-Phase AC SSR Unit (CDG1-1DA-10A) M5Stack Single-Phase AC SSR Unit (CDG1-1DA-10A) M5Stack Single-Phase AC SSR Unit (CDG1-1DA-10A) M5Stack Single-Phase AC SSR Unit (CDG1-1DA-10A) M5Stack Single-Phase AC SSR Unit (CDG1-1DA-10A) M5Stack Single-Phase AC SSR Unit (CDG1-1DA-10A) M5Stack Single-Phase AC SSR Unit (CDG1-1DA-10A) M5Stack Single-Phase AC SSR Unit (CDG1-1DA-10A)
M5Stack Single-Phase AC SSR Unit (CDG1-1DA-10A)
Title:
  • DefaultTitle

$ 18.35

$ 18.35

Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

＋

Description

  • M5Stack Single-Phase AC SSR Unit (CDG1-1DA-10A)
  • Offers three operating modes: Push button control, I2C slave, Modbus networking
  • Comes with a 20cm HY2.0-4P Cable
  • Features single-phase solid-state relay
  • Programmable full-color RGB LED
  • Interface: RS485PWR

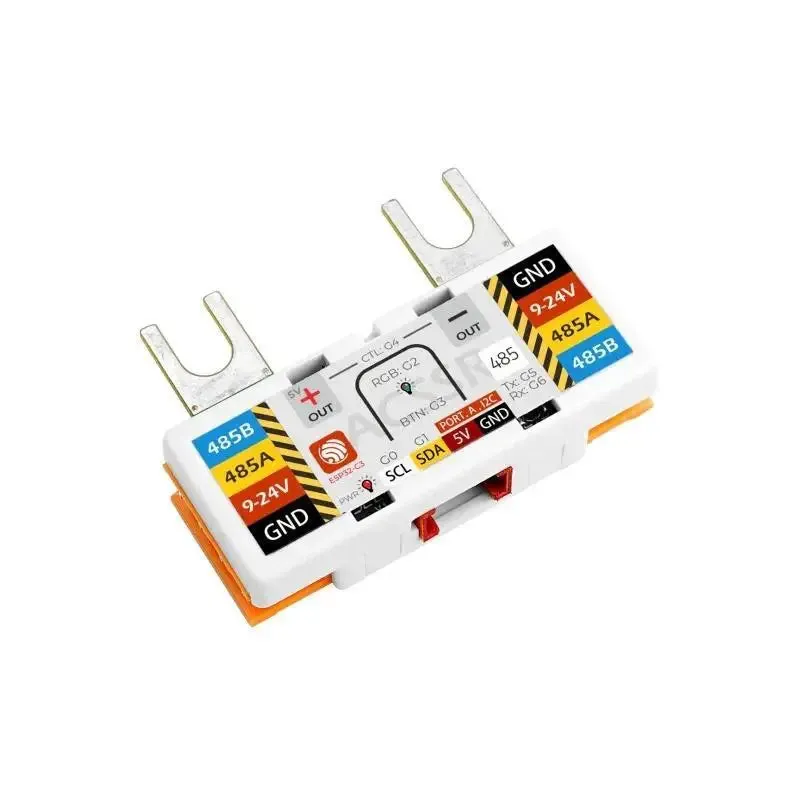

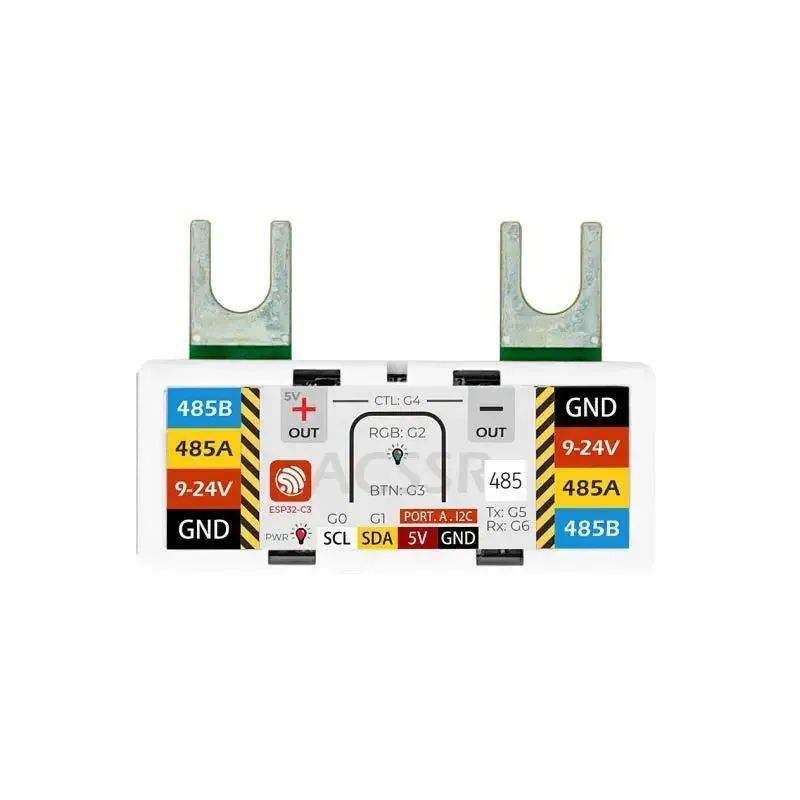

The M5Stack Single-Phase AC SSR Unit (CDG1-1DA-10A) is a DC to AC single phase solid state relay controller kit, that comes with a single phase solid state relay ESP32C3 controller board. Supports key control, I2C slave, and Modbus networking modes of operation. Integrated programmable full-color RGB LED for state indication, clear to operate.

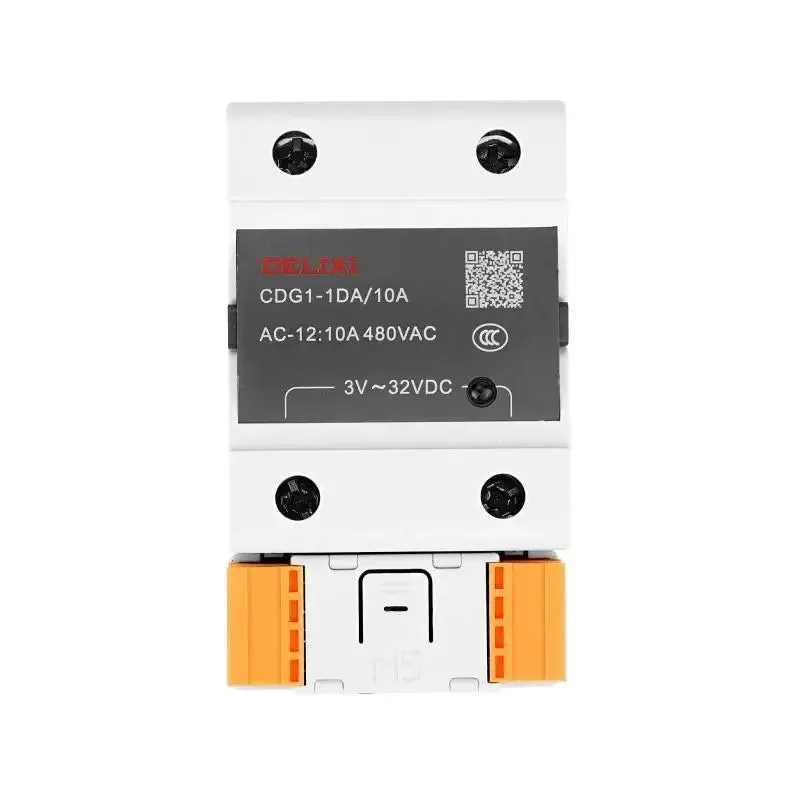

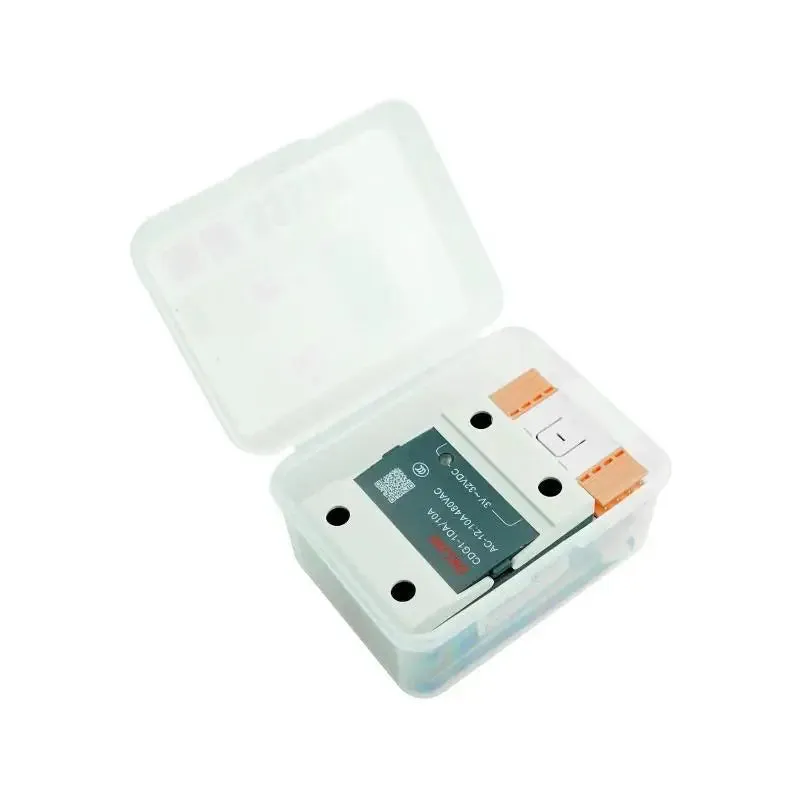

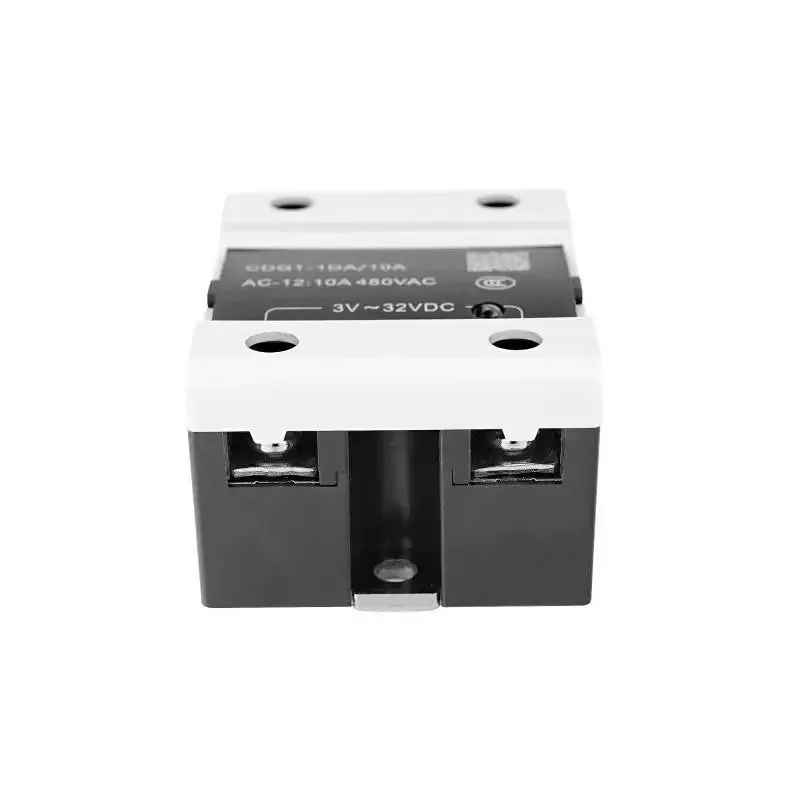

  • 1x Single Phase Solid State Relay
  • 1x UNIT ACSSR
  • 2x 3.96-4P Terminal Block
  • 1x HY2.0-4P Cable (20 cm)

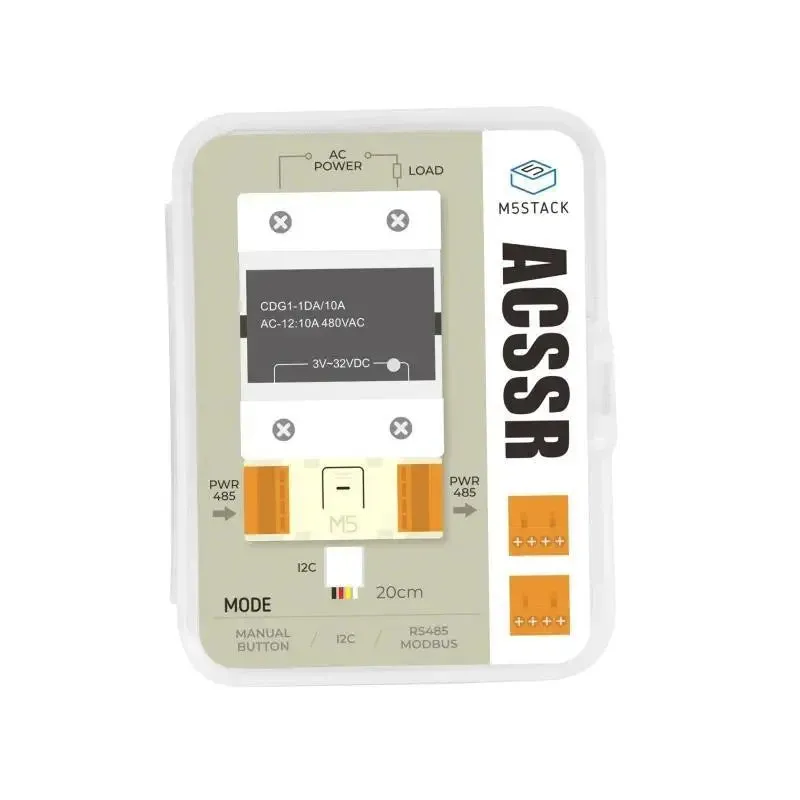

  • 1x Communication protocol manual

Size

  • 80 x 45 x 31 mm
  • HY2.0-4P Cable length: 20 cm
  • Load Current: 10 A
  • Input Control Voltage: 3 - 32 V DC
  • Load Voltage: 24 ~ 480 V AC
  • Input Control Current: 5 ~ 20 mA
  • Breakdown Leakage Current: ≤5 mA
  • On-state Buck: ≤1.6 V
  • Operating current safety series: resistive load: 50% | Inductive load: 50%
  • Electrical life time: ≥1 million times
  • Indicator Light: Red (Lighted: Closed / Off: Disconnected)
  • Weight: 112.6 g
