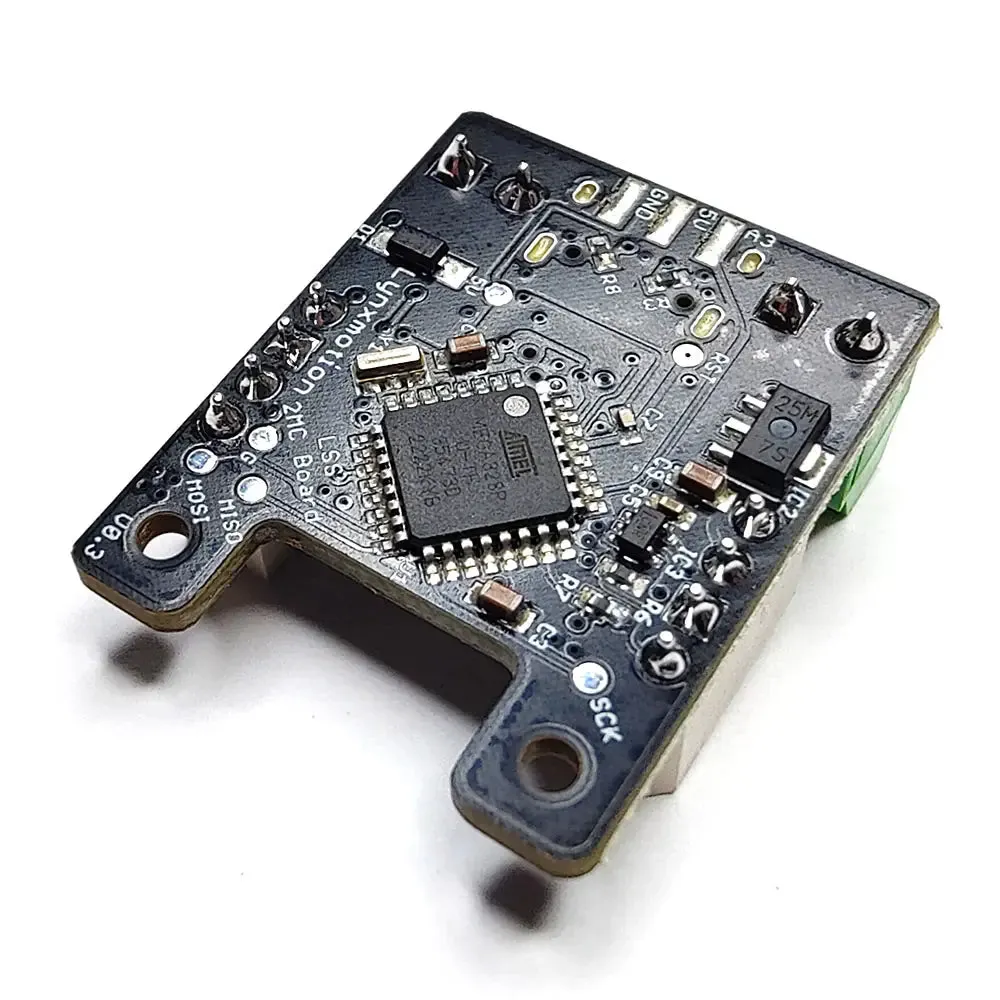

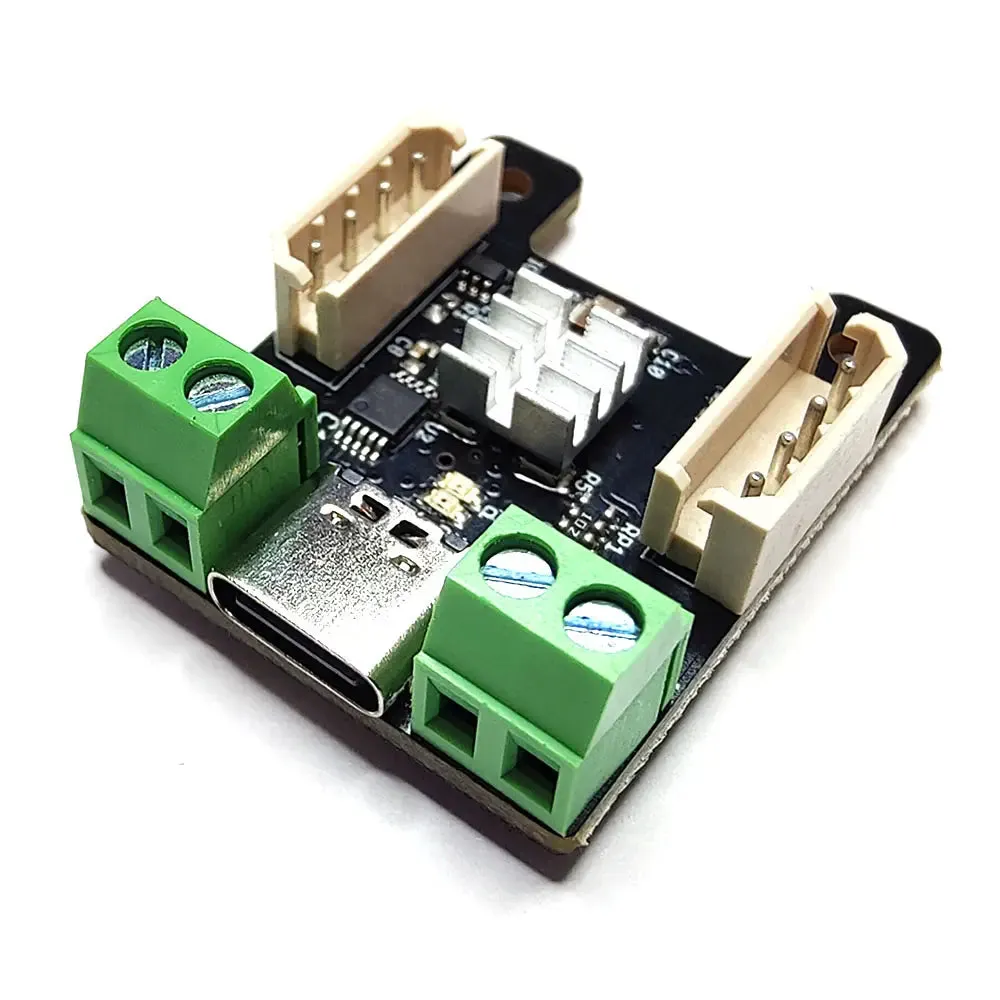

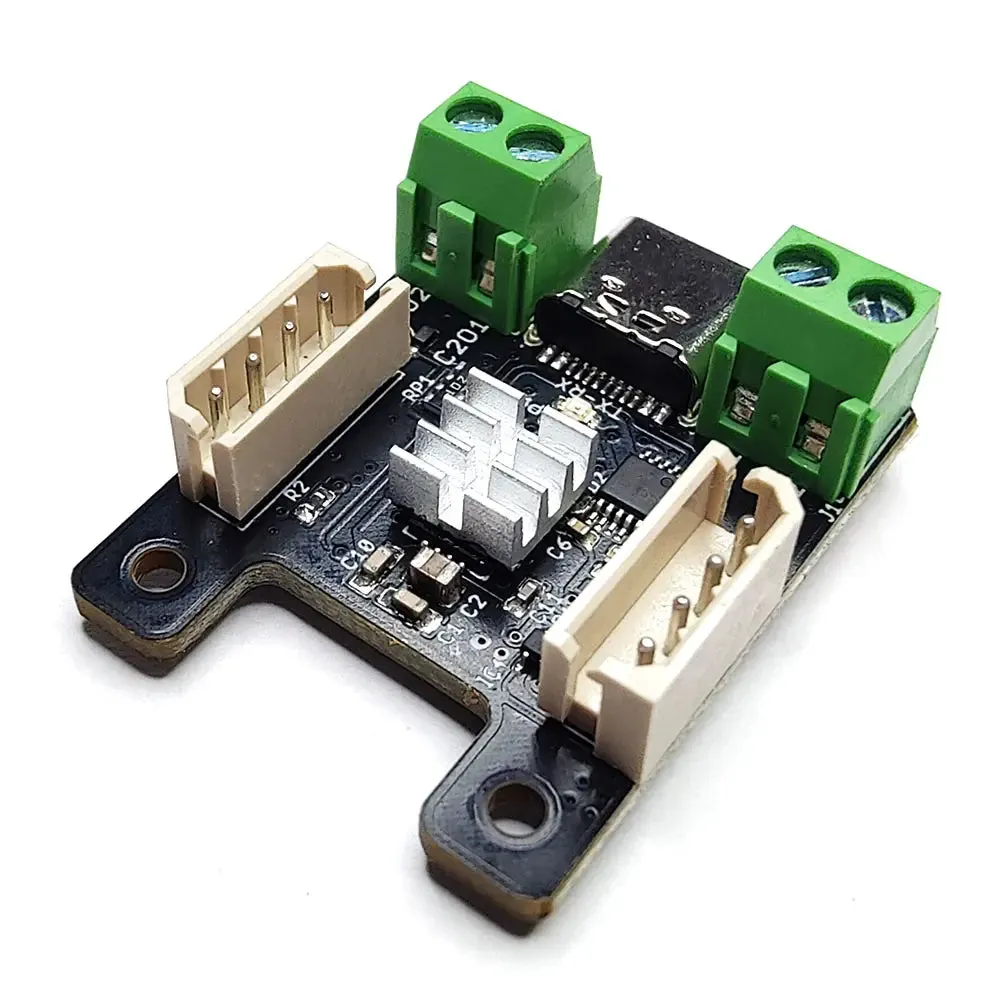

• Lynxmotion SES-V2 Arduino Compatible Dual 1.2A Motor Controller for LSS (LSS-2MC)
• Dual Channel 6-21VDC, 1.2 A H-Bridge Motor Driver Module
• Compatible with the Lynxmotion Smart Servo (LSS)
• Input: Lynxmotion Serial Protocol (when using the Lss2MC code)
• Arduino Nano bootloader installed & Arduino IDE compatible

The Lynxmotion SES-V2 Arduino Compatible Dual 1.2A Motor Controller for LSS or LSS-2MC (Lynxmotion Smart Servo To Motor Controller) module was designed as a multi-purpose, Arduino programmable board intended to "bridge the gap" between a Lynxmotion Smart Servo (LSS) serial bus and one or two electromechanical devices operating on PWM input like brushed DC motors (used to rotate fans, pumps or wheels for example), or LEDs.

The onboard motor controller chip also allows for control of one bipolar stepper motor using all four pins. Although a default program is included when shipped, it can be re-programmed using the standard Arduino IDE software to communicate with the onboard motor controller acting as a standard Arduino board.

Example use of the LSS-2MC with the LSS

Features

• Dual 1.2A H-Bridge motor driver (MP6508GR-P)
• USB Type-C connector
• 2x LSS connectors allow for daisy chaining
• Input / Output A3 pin under the USB Type-C (Unpopulated / Solder pads only)
• LED (red): Tx-Rx USB serial activity
• LED (green): Power LED (PWR)
• Arduino Nano bootloader installed & Arduino IDE compatible
• Lynxmotion Smart Servo (LSS) mounting pattern
• Same form factor as the LSS - Power Hub / LSS - 2IO Board / LSS - 5VR Board
