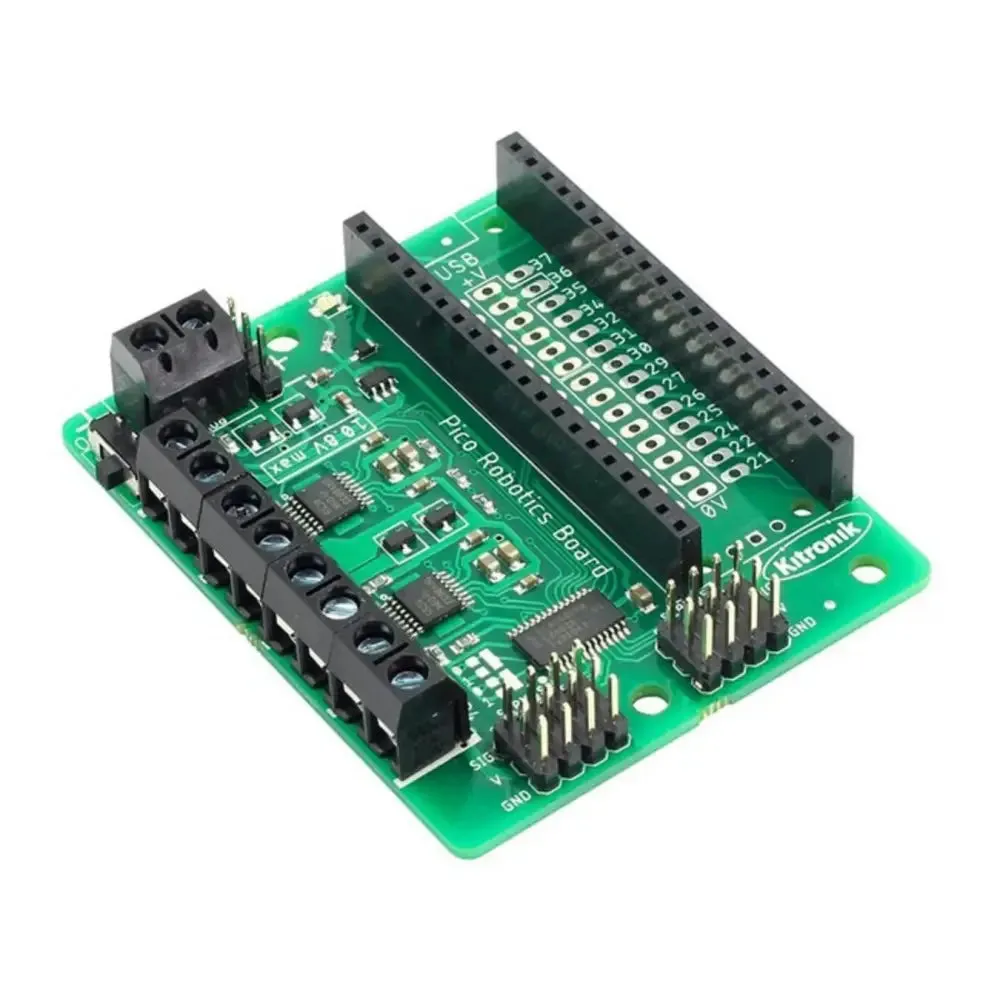

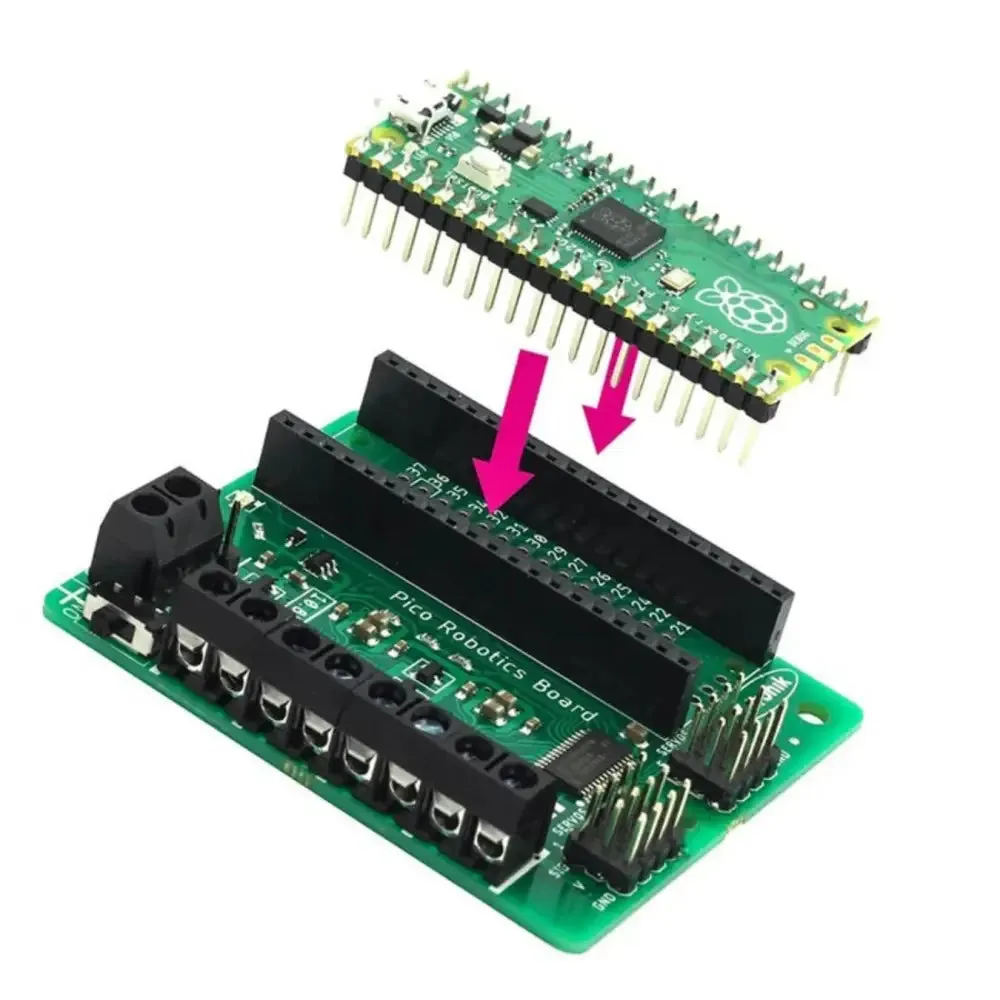

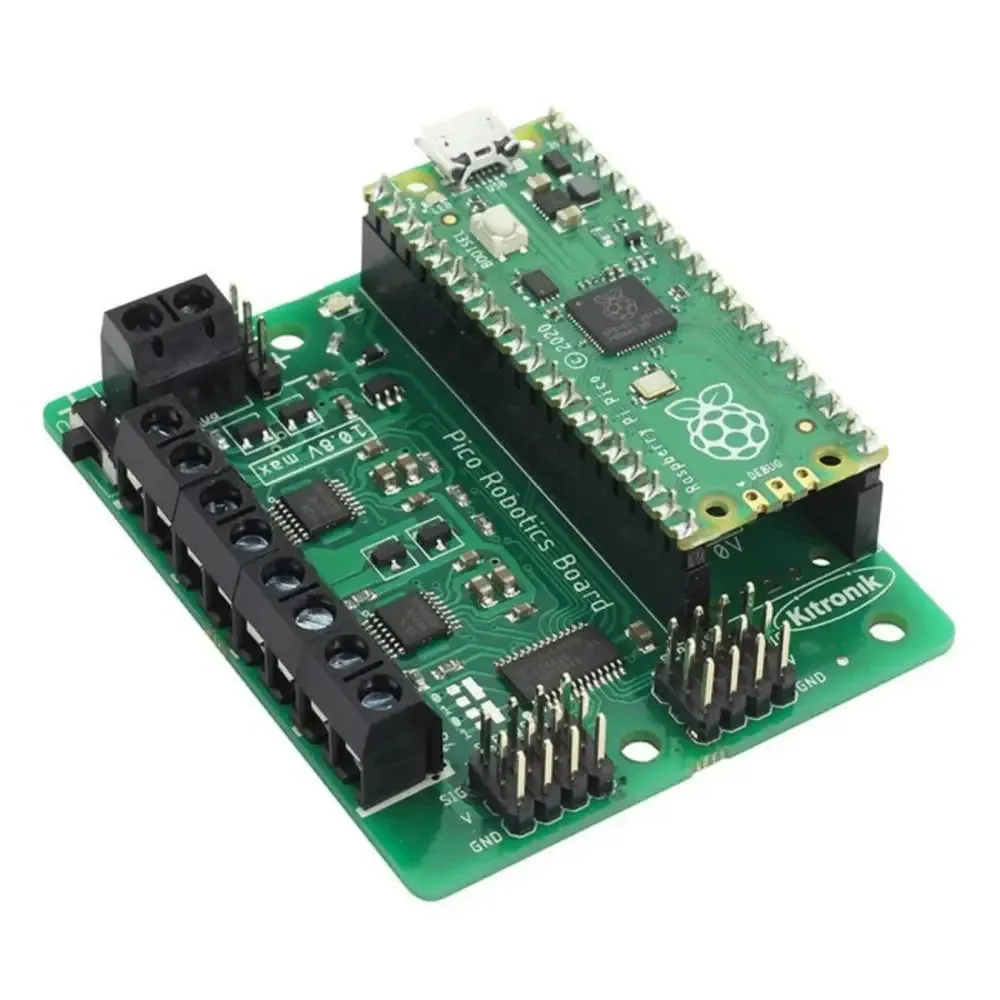

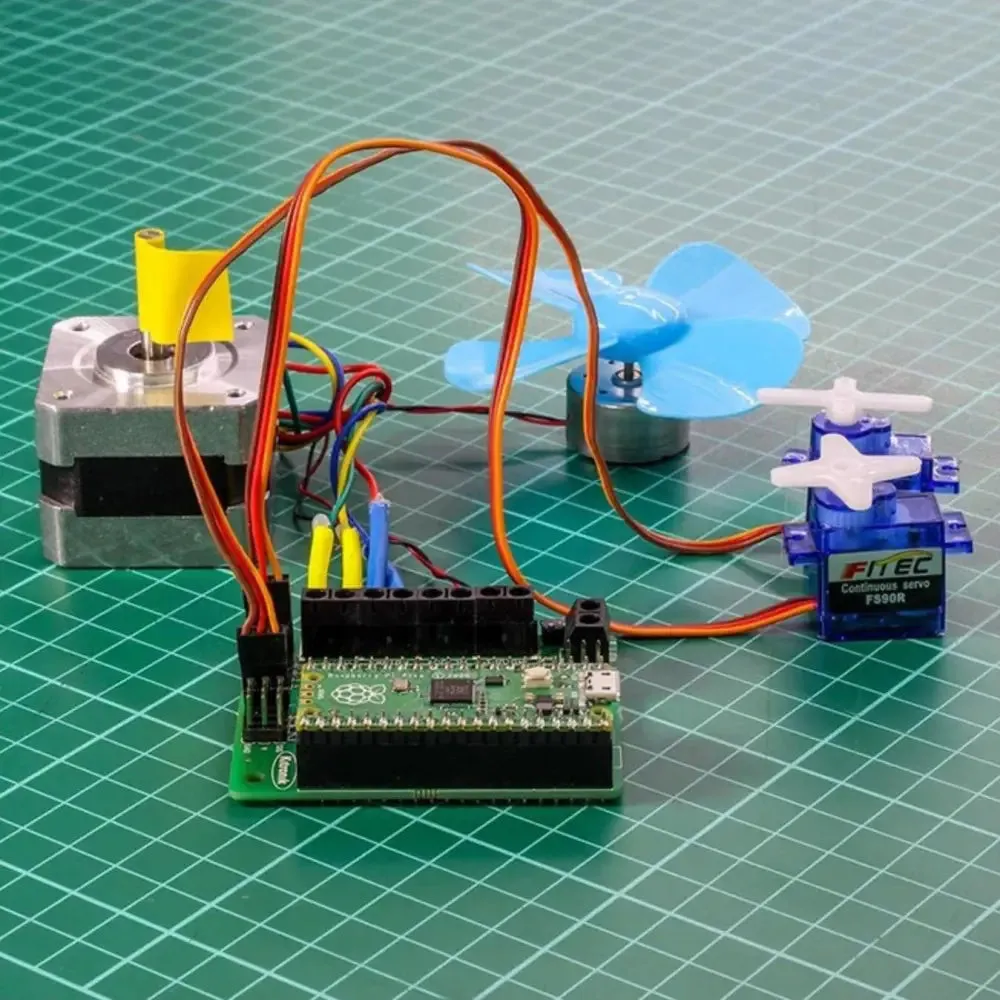

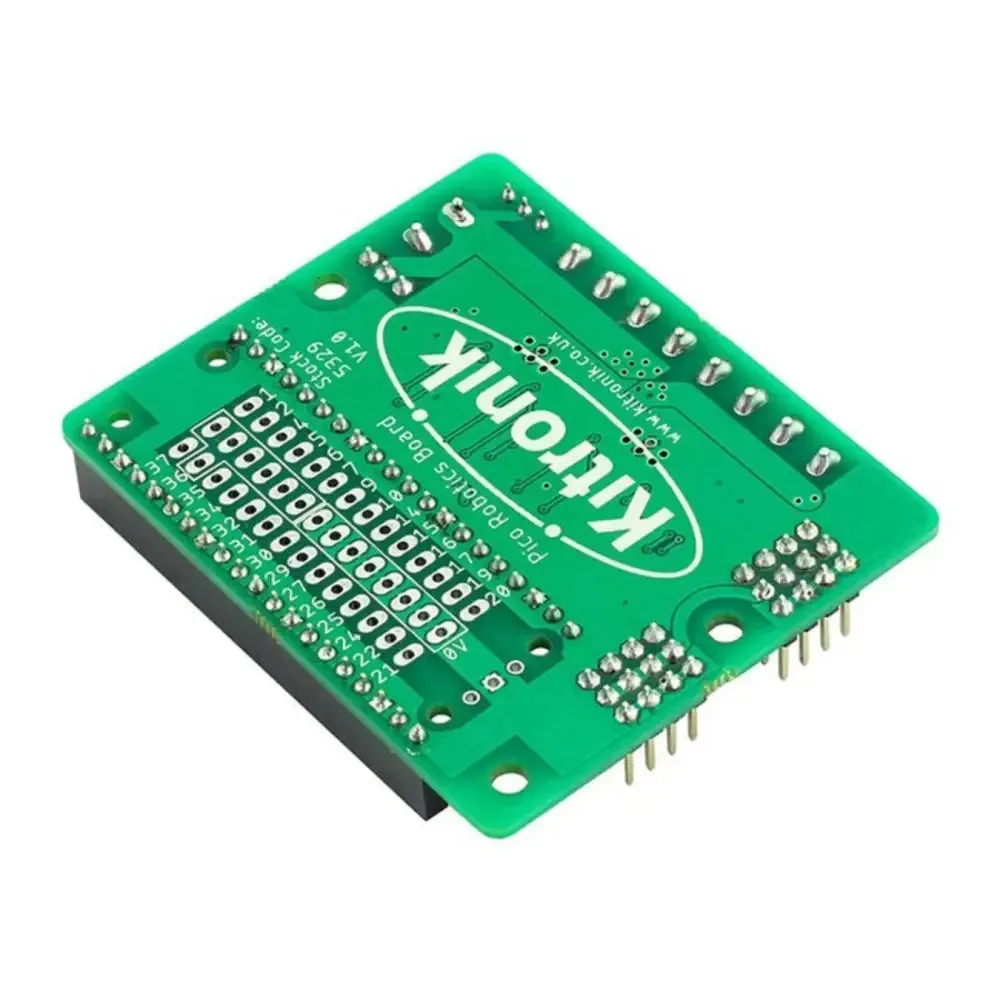

The Kitronik Robotics Board for Raspberry Pi Pico enables the Raspberry Pi Pico (connected via pin header) to drive 4 motors (or 2 stepper motors) and 8 servos. It also features 27 other I/O expansion points and Power and Ground connections.
The Robotics Board features 2 Dual H Bridge Motor Driver ICs. These are capable of driving 2 standard motors or 1 stepper motor each, with full forward, reverse, and stop control. There are also 8 servo outputs, capable of driving standard and continuous rotation servos.
Power is provided via either a terminal block or servo-style connector. The supply is then controlled by an on/off power switch to the board and there is also a green LED to indicate when the board has power. The board then produces a regulated 3.3 V supply which is fed into the 3 V and GND connections to power the connected Pico.
1x Kitronik Robotics Board for Raspberry Pi Pico
Size
68 x 56 x 10 mm (L x W x H)
PCB Thickness: 1.6 mm
Supply Voltage: 3 - 10.8 V
Number of Servo Channels: 8
Number of Motor Channels: 4 DC / 2 Stepper
Servo / Motor Voltage: Same as Supply Voltage
Max Continuous Current (all Servos and Motors): 10 Amps
