Built-in USB-C connector and Sturdy screw terminals
Onboard 2MB QSPI flash
Doesn't require soldering

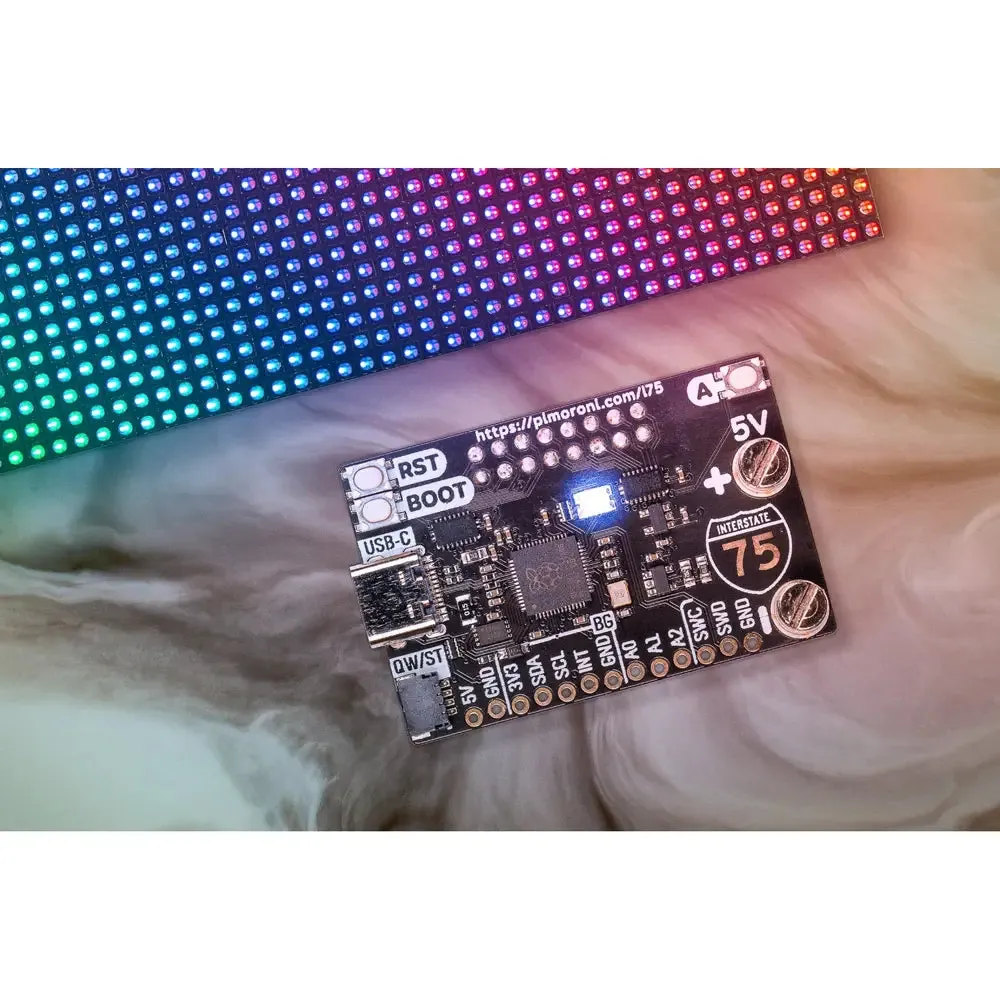

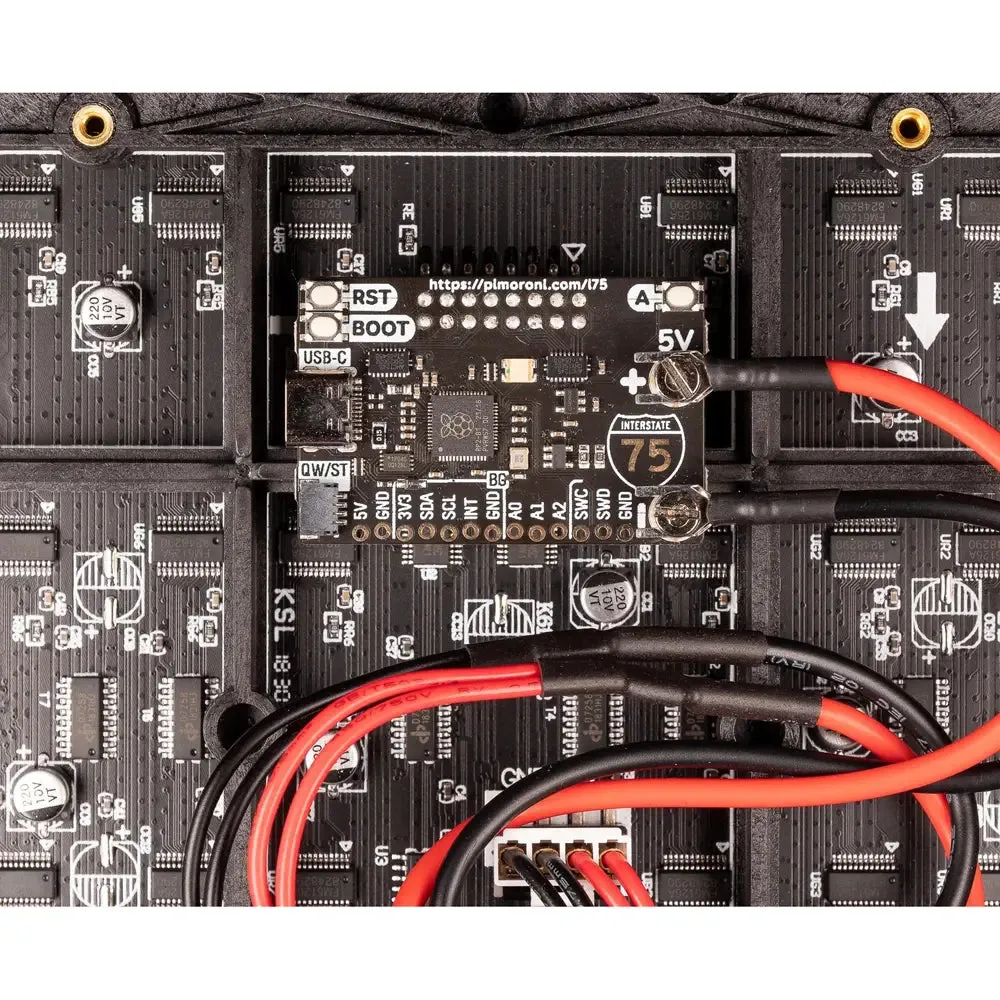

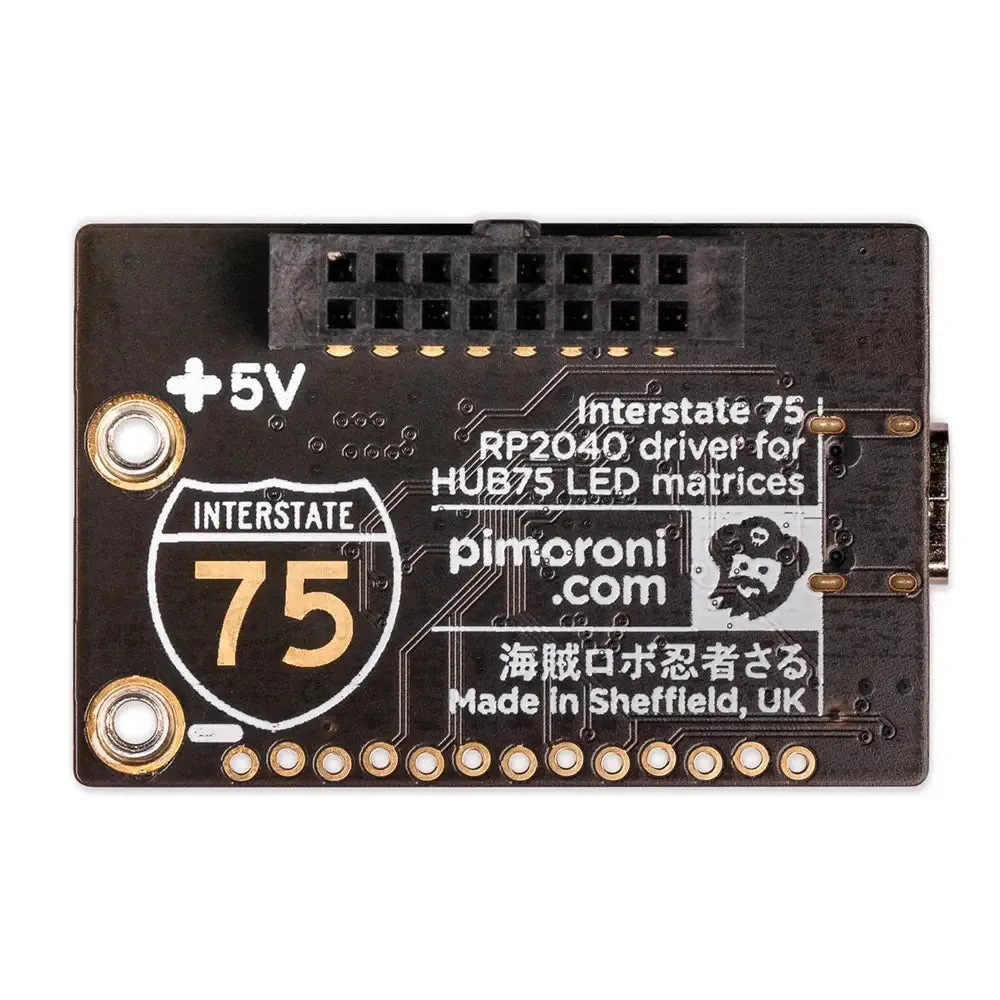

The Interstate 75 - RGB LED Matrix Driver is an RP2040-based driver board for HUB75-style LED matrices. It's designed to plug neatly into the back of a LED panel and provides a quick and easy way to whip up some scrolling signage or an eye-catching LED display for sensor outputs.
I75 is powered and programmable by USB-C. USB-C is capable of providing up to 3A of power which should be enough to power a single 64x64 (or smaller) panel, assuming you're not planning anything too eye-bleedingly bright. There are also two useful buttons, a reset button, and an onboard RGB LED.
1x Interstate 75 - RGB LED Matrix Driver
48.5 x 31 x 17 mm (L x W x H)
PDF File
Powered by RP2040
QSPI Flash: 2 MB
Sturdy screw terminals
Connector: USB-C
Connector: Qw/ST (Qwiic/STEMMA QT)
Buttons: Reset, BOOT, and a User button
RGB LED: Yes
Soldering required: No
Compatible with 32x32, 32x64 and 64x64 LED matrices
