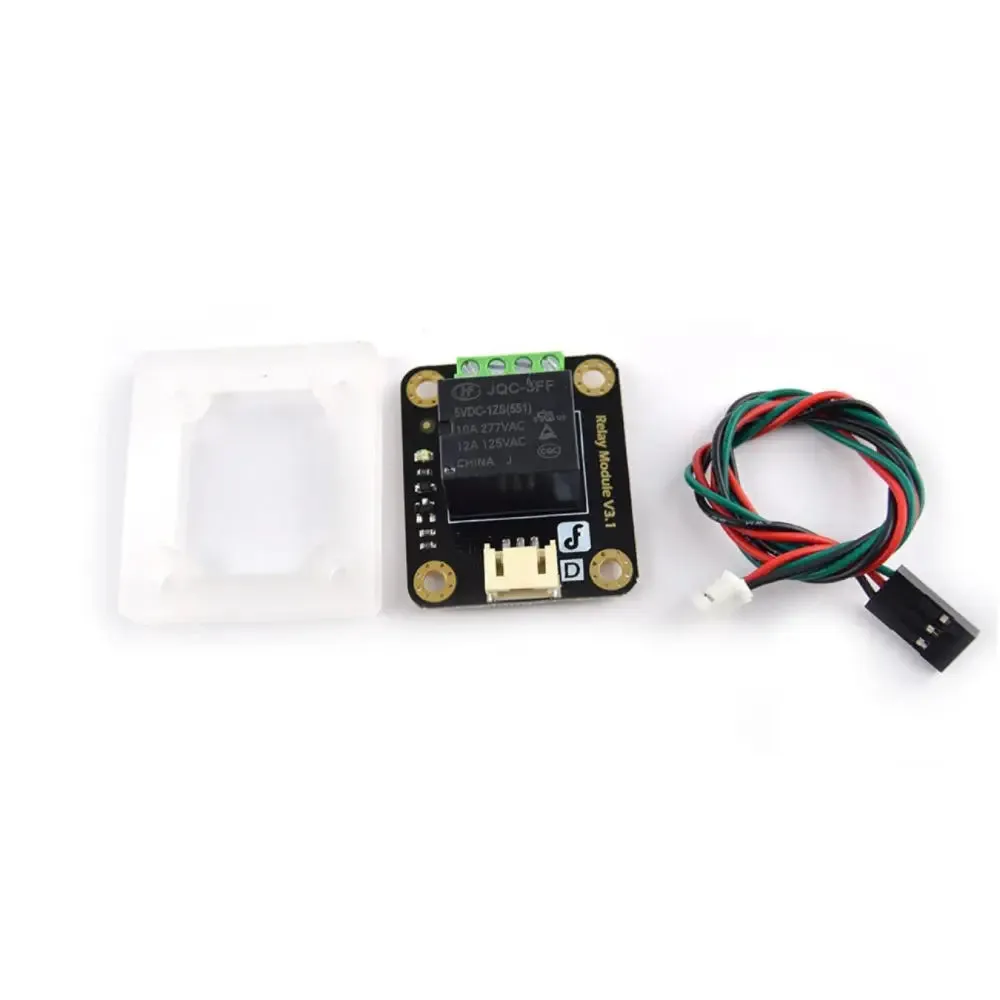

Gravity Single Relay Module
Gravity Single Relay Module
Title:
  • DefaultTitle

$ 64.22

$ 49.40

Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

Description

  • Blocks the number of electronic modules
  • Can be used in interactive projects
  • Its modular design makes it easy to expand with the Arduino board (not included)
  • The Relay output state by a light-emitting diode

The Gravity Single Relay Moduleblocks the number of electronic modules. It can be used in interactive projects.  It can also be used to control the lighting, electrical and other equipments. The modular design makes it easy to expand with the Arduino board (not included). The Relay output state by a light-emitting diode. It can be controlled through the digital IO port, such as solenoid valves, lamps, motors and other high current or high voltage devices.

PDF Files

  • Type: Digital
  • Single relay board
  • Rated through-current: 10A (NO) 5A (NC)
  • Maximum switching voltage: 150VAC 24VDC
  • Digital interface
  • Control signal: TTL level
  • Contact Rating (Res. Load):10A 277VAC/24VDC
  • Max. switching voltage 250VAC/30VDC 250VAC/30VDC
  • Max. switching current 15A
  • Max. switching power 2770VA 240W 2770VA 240W
  • UL Rating: 10A 120VAC /10A 277VAC
  • Operate time (at nomi. Vot.): 10ms
  • Release time (at nomi. Vot.): 5ms
  • Module pin definitions: One foot - control side, two feet - Power supply (VCC), 3 feet - ground
