Description

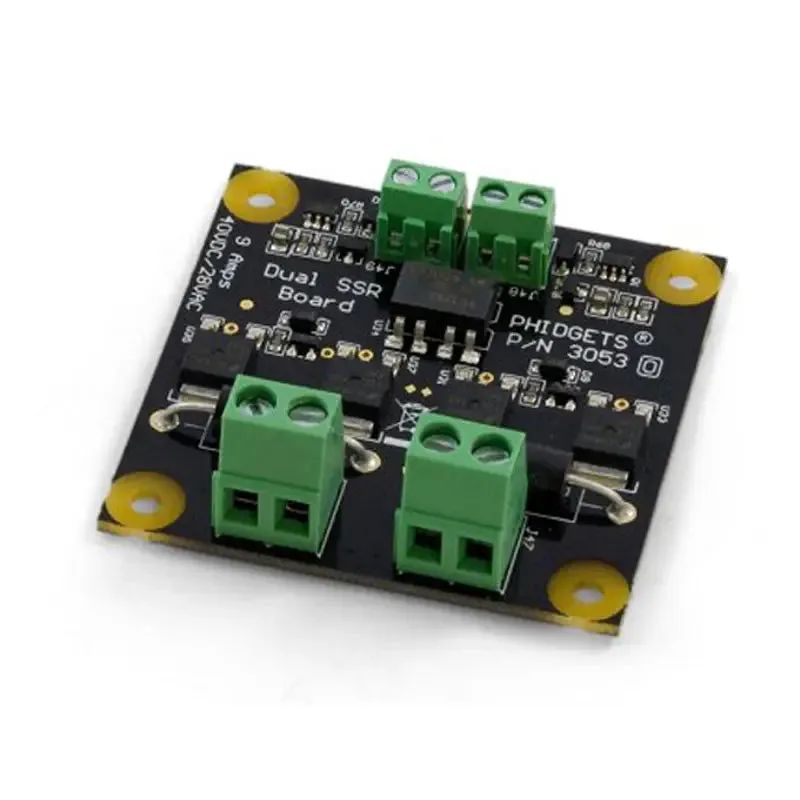

- 1x Dual SSR Relay Board
- 2.0 x 2.0 x 0.62 inch (L x W x H)
- Relay Output Type: MOSFET
- Isolation Method: Photoelectric
- Dielectric Strength: 5.3 kV AC
- Control Voltage Min: 3 V DC
- Control Voltage Max: 30 V DC
- Control Current: 10 mA
- Load Voltage Max (DC): 40 V DC
- Load Voltage Max (AC): 28 V AC
- Load Current Max (AC): (per channel) 9 A
- Load Current Max (DC): (per channel) 9 A
- Turn-on Time Max: 1.9 ms
- Turn-off Time Max: 0.16 ms
- Contact Resistance Max: 50 mΩ
- Switching Speed Max: 300 cps
Physical
- Recommended Wire Size (Control): 16 - 26 AWG
- Recommended Wire Size (Load): 12 - 24 AWG
- Operating Temperature Min: -40 °C
- Operating Temperature Max: 100 °C
