Name: Devantech DS2832 32x16A Ethernet Relay
SKU: 79072

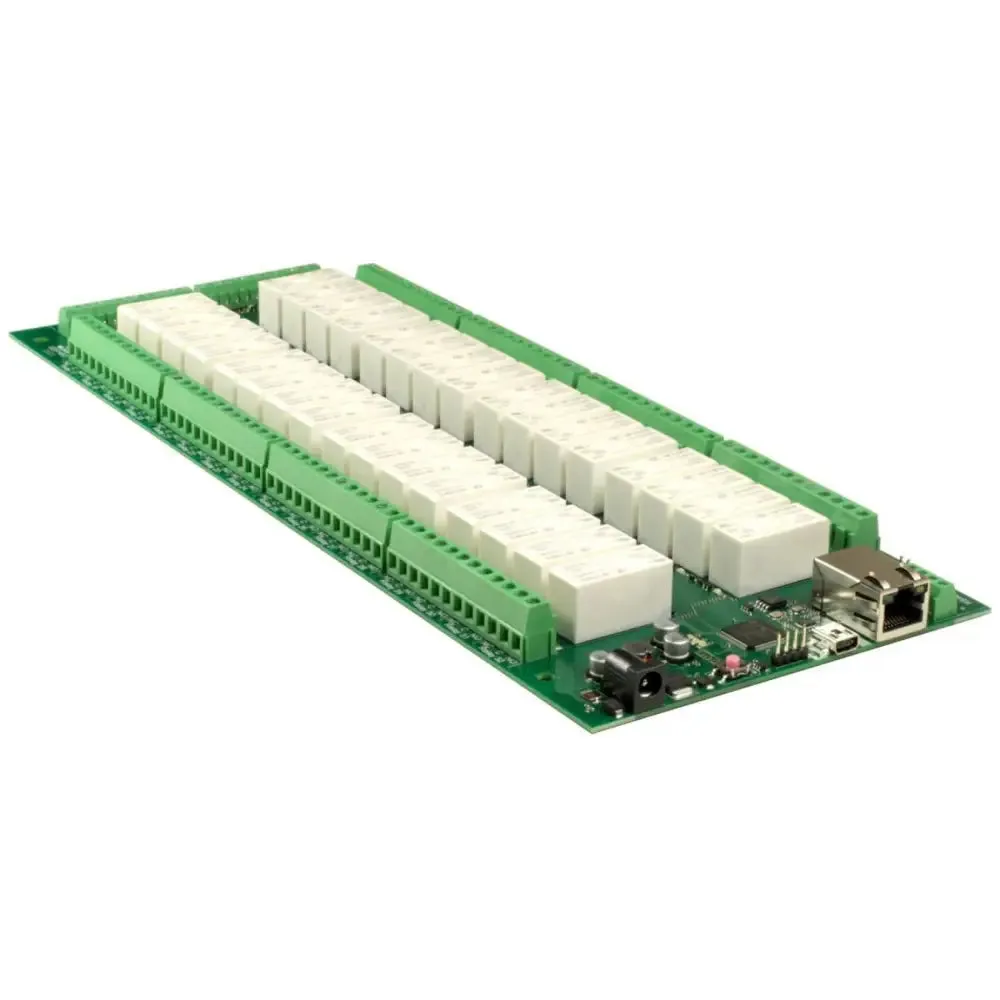

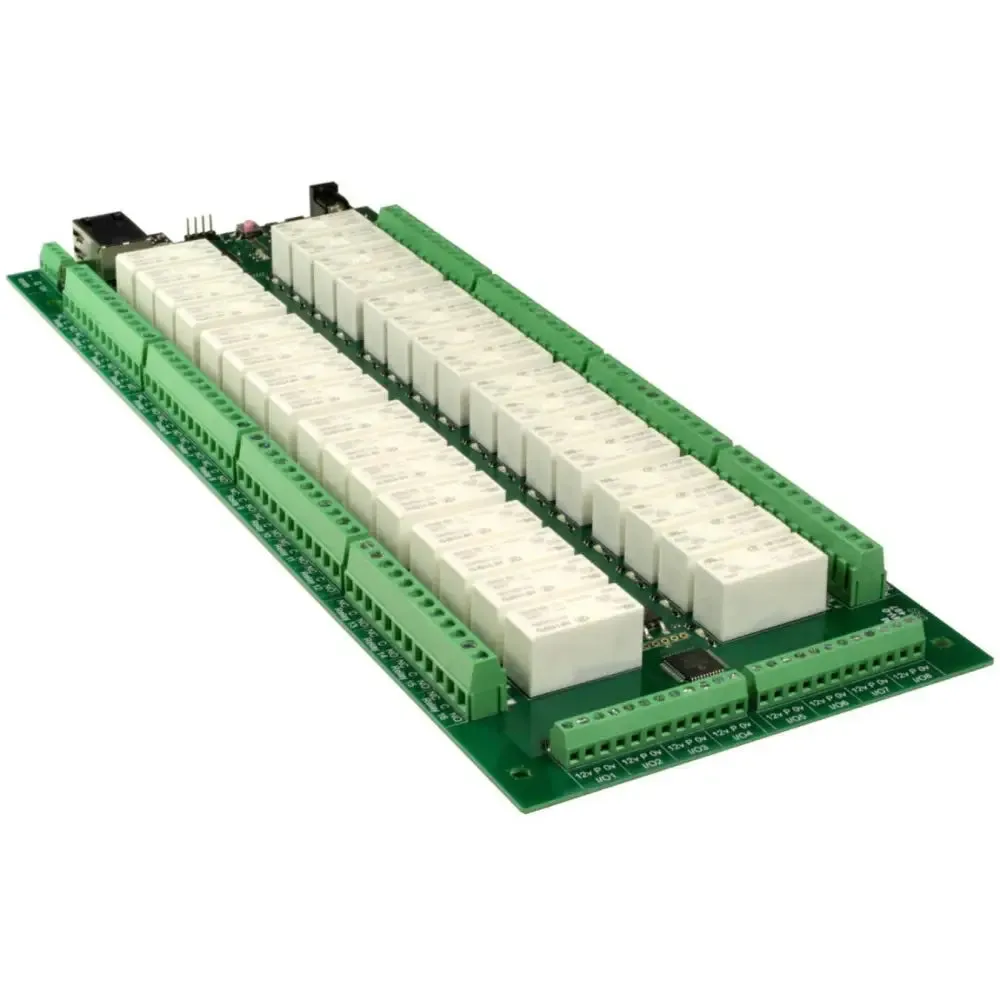

Devantech DS2832 32x16A Ethernet Relay
Offers simple configuration and setup from your web browser
Provides Binary or Modbus protocols
Create Peer to Peer control in a few clicks
Send email notifications on selected events
Add simple relay automation, for automatic relay control

The Devantech DS2832 32x16A Ethernet Relay offers simple configuration and setup from your web browser. Control it from a web page, or select TCP/IP control with an option of ASCII, Binary, or Modbus protocols.

Optional AES encryption for totally secure control using binary TCP/IP mode. Add simple relay automation, for automatic relay control. Up to eight 32-bit counters with capture and reset, 10 counts/second on inputs.

1 x Devantech DS2832 32x16A Ethernet Relay

Hardware

Serial ports: 1 x TTL level serial port, 1 x RS485 port.
Relays: 32 with up to 16 Amp at 24 Vdc or 250 Vac, screw Terminals for N/O N/C, and Common contacts
I/O: 8 flexible channels, your choice of VFC input, NPN output, or 12-bit analog input.
Communication: USB for development, RJ45 Ethernet for normal access
Power: 12V DC jack 2.1 mm (adaptor sold separately)
