Supports easy USB configuration with included PC app.
Operates with 9V AC or 12V DC power supplies.
Features solid-state relays for phase-controlled dimming.
Offers DMX feed-through on all pins, including 4 and 5.

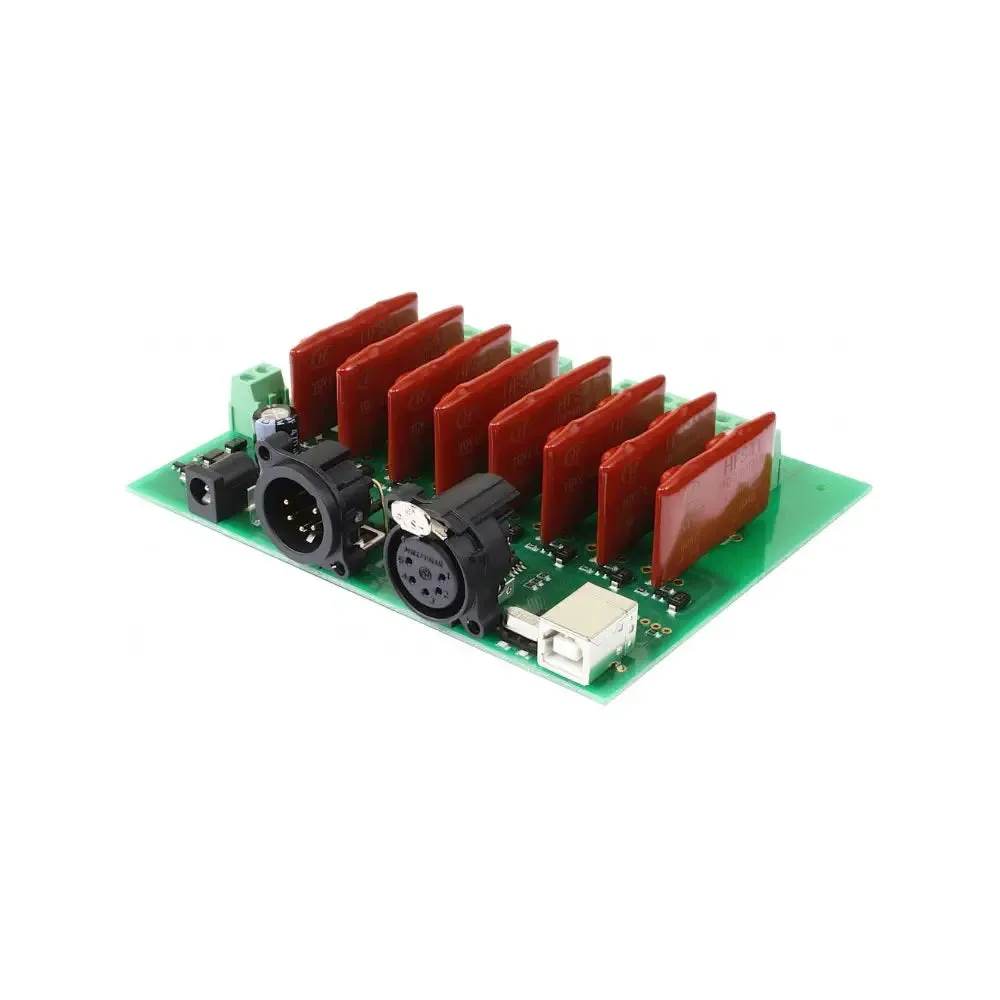

The Devantech Dmx-USB-Rx-Rly8 - 8 Ssr is a sophisticated device designed to meet the latest USITT DMX512-A standard while maintaining compatibility with the older USITT DMX512/1990 standard. It offers user-friendly configuration through a USB port, eliminating the need for dip switches, and includes a PC application for seamless setup. The module can be assigned any DMX address ranging from 1 to 505, providing flexibility in various applications. It operates on either a single isolated 9V AC supply, necessary for dimming functions, or a 12V DC supply for simple on/off operations.
Equipped with solid-state relays, the device supports phase-controlled dimming for voltages between 48VAC and 250VAC, with a minimum load of 100mA and a maximum load of 5 Amps. The DMX feed-through is available on all pins, including pins 4 and 5, and the device features selectable 120 Ohm termination for enhanced signal integrity.
Note: Ensure proper handling of electrical components to avoid hazards.
1x Devantech Dmx-USB-Rx-Rly8 - 8 Ssr
Fully compliant with the latest USITT DMX512-A standard
Backward compatible with the older USITT DMX512/1990 standard
Configuration is manageable via a USB port with a supplied PC application; no dip switches required
Can be set to any DMX address from 1 to 505
Utilizes an isolated 9V AC for dimming or a 12V DC supply for power (on or off only)
Features Solid State Relays for phase-controlled dimming, ranging from 48VAC to 250VAC, with a minimum load of 100mA and a maximum of 5Amps
