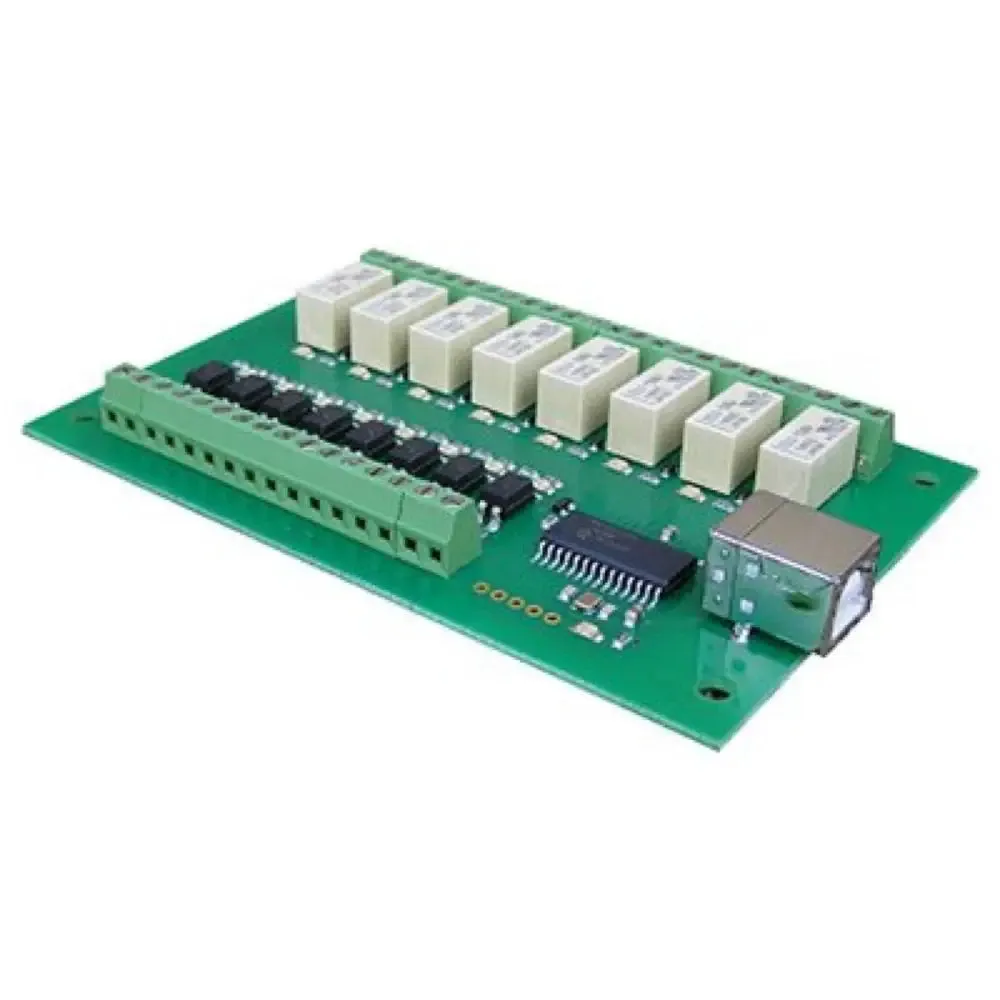

Devantech 8-Channel, 1A Optically Isolated USB Relay Module
Title:
DefaultTitle
$90.21
$90.21
Please select combo product attributes
The combo subtotal is $,SAVE$
Product Details
＋
Description
Number of isolated inputs: 8
Number of relay outputs: 8
Powered from standard USB bus
Input voltage: 4.5VDC to 27VDC
The Devantech 8-Channel, 1A Optically Isolated USB Relay Module provides eight optically isolated inputs and eight volt free contact relay outputs with a current rating of up to 1Amp each. It is powered from any standard USB bus and has an exceptionally low maximum current consumption of approx. 90mA with all relays on. The relays are SPCO (Single Pole Change Over) types. The normally open, normally closed and common pins are all available on the screw terminals.
ZIP File
Relay current: Up to 1Amp @30VDC or 60vac. 500mA @ 110vac. 250mA @ 250vac
Connections: Screw terminals for N/O, N/C, Common contacts and /- inputs
