36V 800W Brushed Speed Controller Throttle Twist Grip for Scooter Motor E-Bike
Material: Plastic, Aluminum
Color: As shown
36V motor brushed controller:
Matching motor: DC brushed motor
Motor brush controller for Electric bicycle & scooter
Rated voltage: DC 36V
Rated power: 800W
Under voltage protection: 31.5V /- 0.5V
Size: L: 86mm/3.4" x W:66mm/2.6" x H: 38mm/1.5"
Speed regulator 1- 4 V(Throttle )
Current limit: 28A ± 1A short voltege
Match motor: 36V 500W

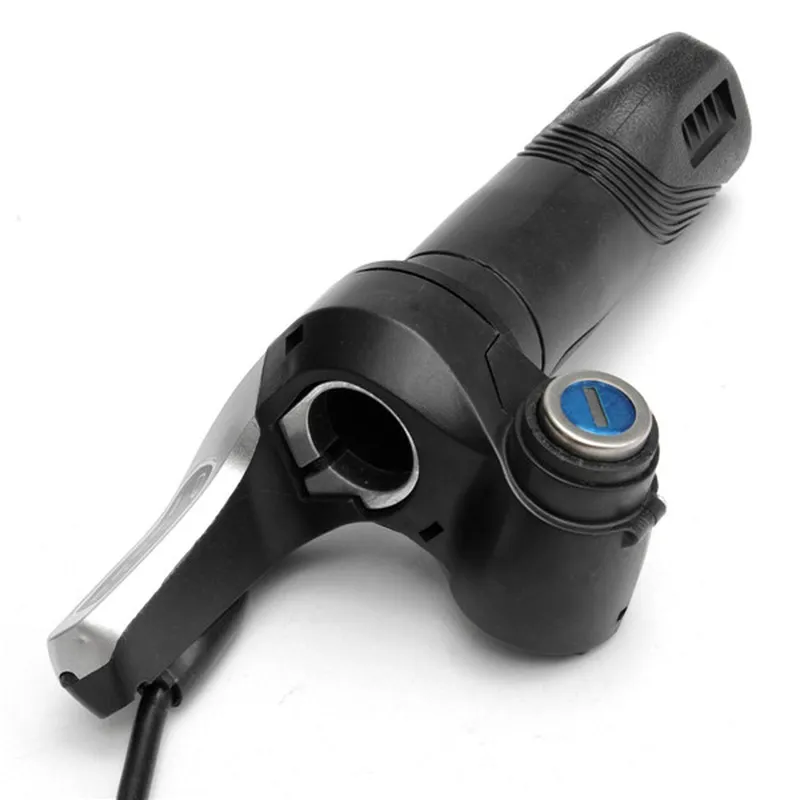

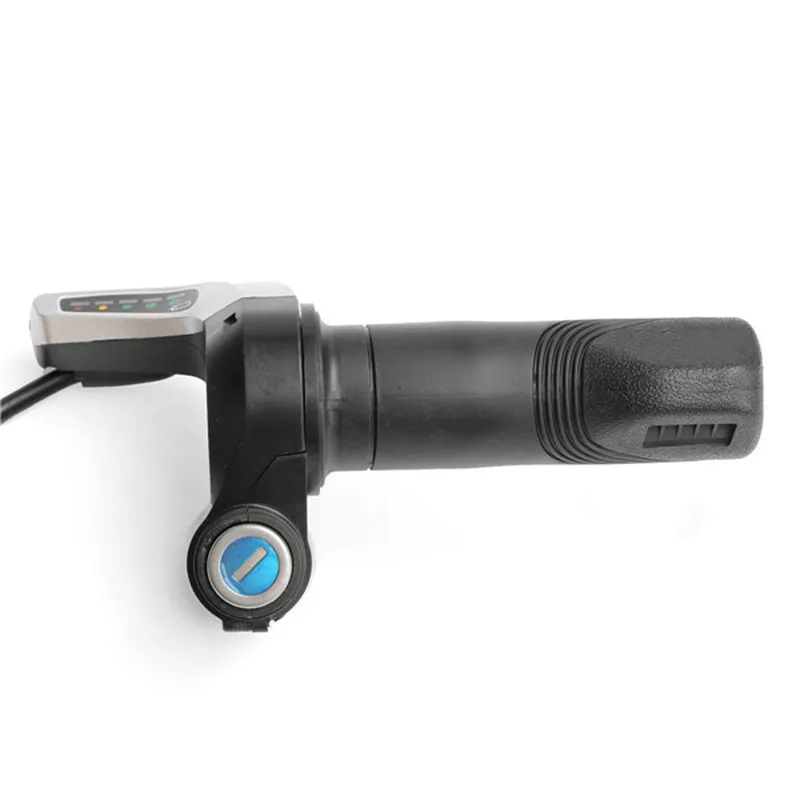

DC36V Throttle twist grips:
Electric bike scooter twist throttle accelerator with power display, 5 Led battery indicator.
Throttle works voltage: DC5V
Speed adjusting signal: 1 V- 4 V
Power display Voltage: DC 36V
Power display:
Normal: 35V above, 3 led green
Half: 35V ~ 32V, led yellow
Empty: 32V or less, led red
Rotation angle: 0 °~ 70 °
Working temperature: -20 ~ 50
Fits standard 7/8 inches(22.2mm) handle bars
Cable length is approximately 47 inches (1.2m)

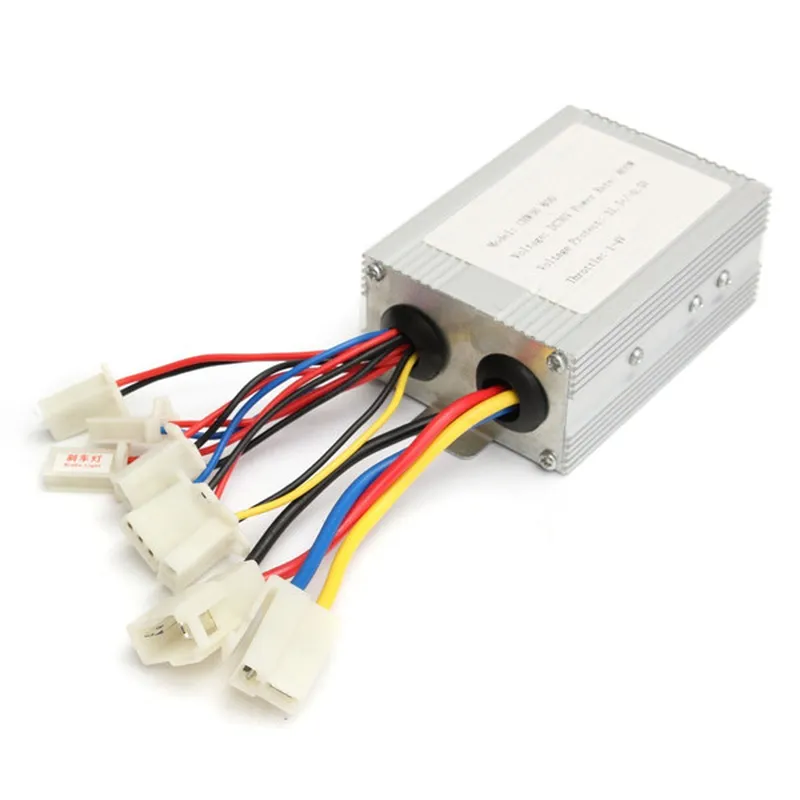

Controller Wires Interface Definition:
Battery :Thick black (power negative) /Thick red (power positive)
Motor :Thick yellow (motor negative) /Thick blue (motor positive)
Ignition Switch :Thin red(VCC)/Thin blue
Indicator : Thin red (Indicator power output) /thin black (indicator negative)
Brake :thin yellow (brake signal)/thin black(negative power)
Speed governor :Thin blue(speed handlebar signal input) /Thin black (negtive power) /thin red(5V positive power)
Charge Port : Thin red (charge input power positive) /thin black (power negative)
Brake Light: Thin red (power Positive) /thin black (power negative)
Sport: Thin yellow /thin green(speed limit, connected the wires together)

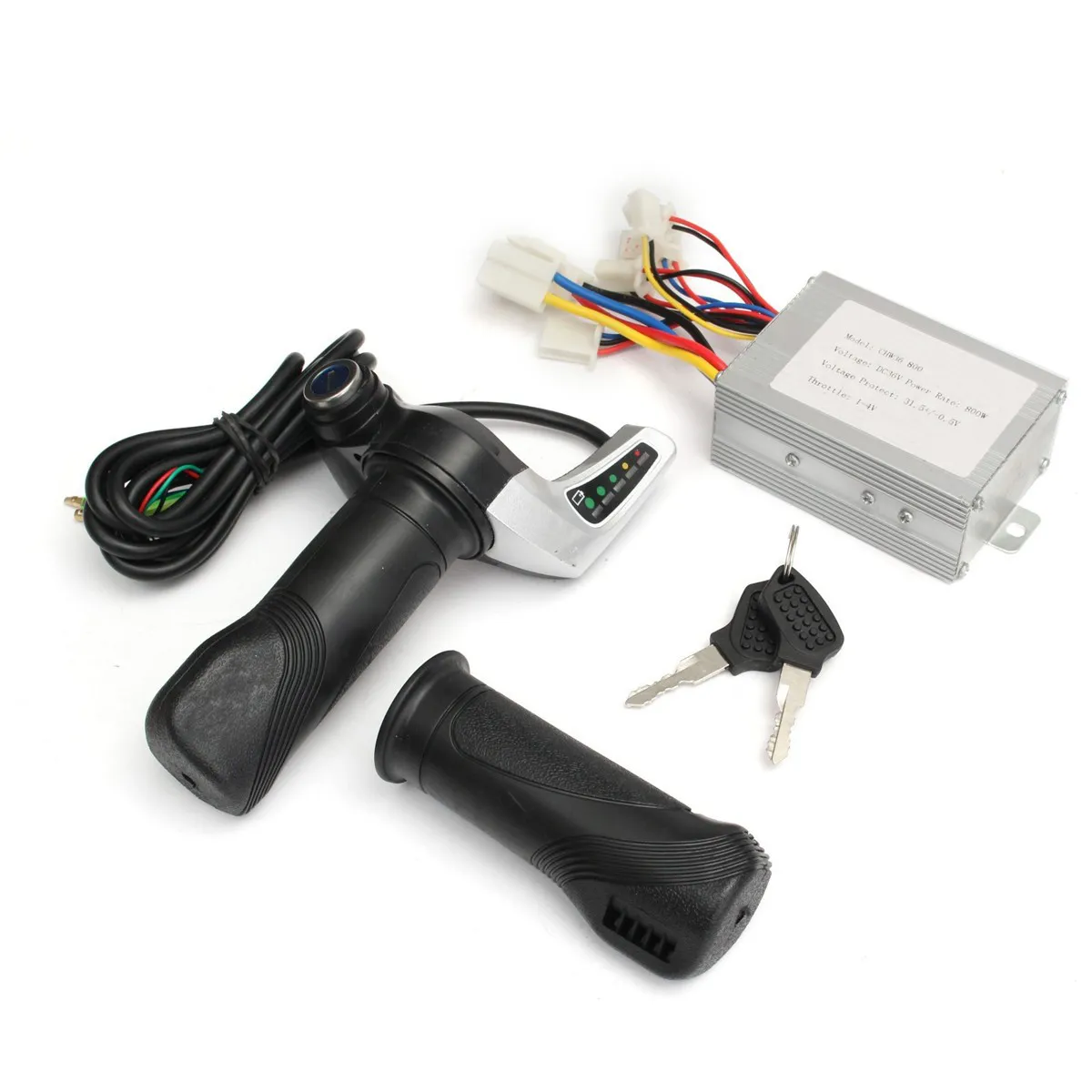

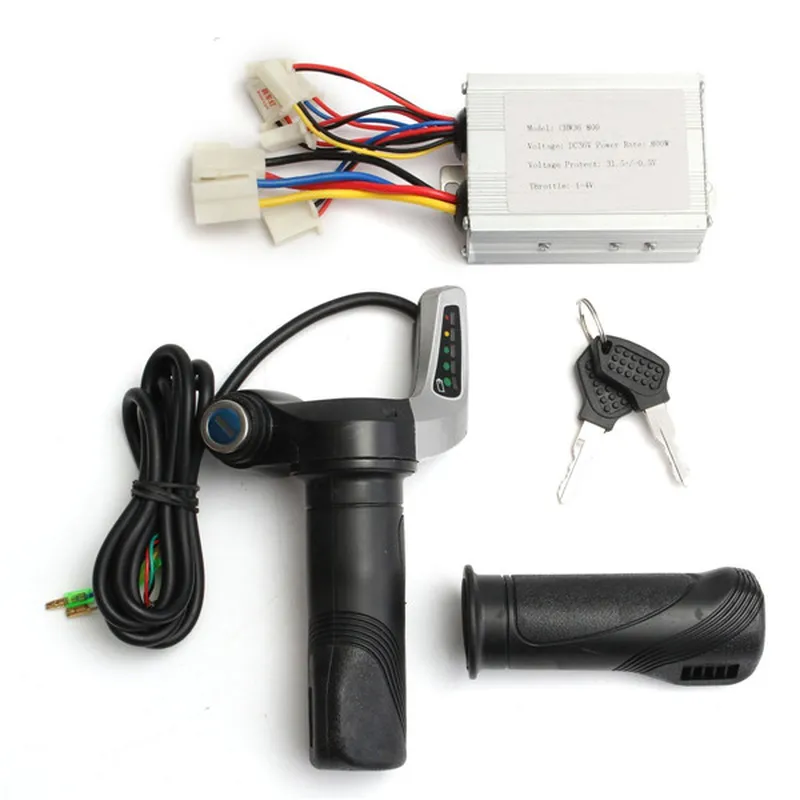

Package Included:

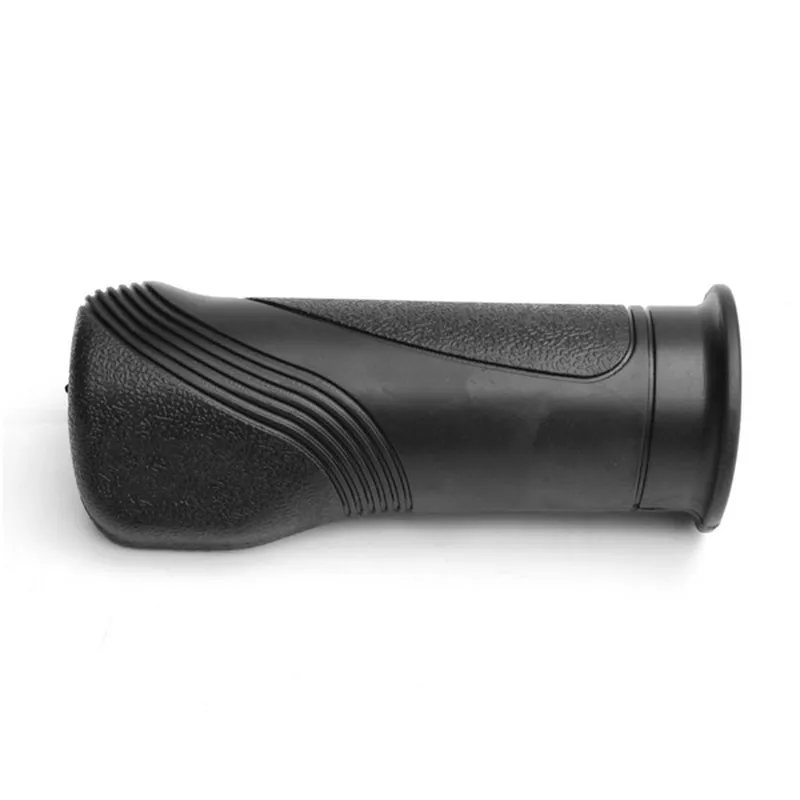

1 X 36V Throttle Grip With Normal Grip
1 X 36V 800W Controller
1 X Black Terminal Ends
